(10.216.080) - VAR - 758113 - FUEL TANK, COVER, DRAWBAR, ANTILOCK BRAKING SYSTEM (ABS)

Запчасти Case IH OPTUM 270 CVT (10.216.080) - VAR - 758113 - FUEL TANK, COVER, DRAWBAR, ANTILOCK BRAKING SYSTEM (ABS) (10) - ENGINE

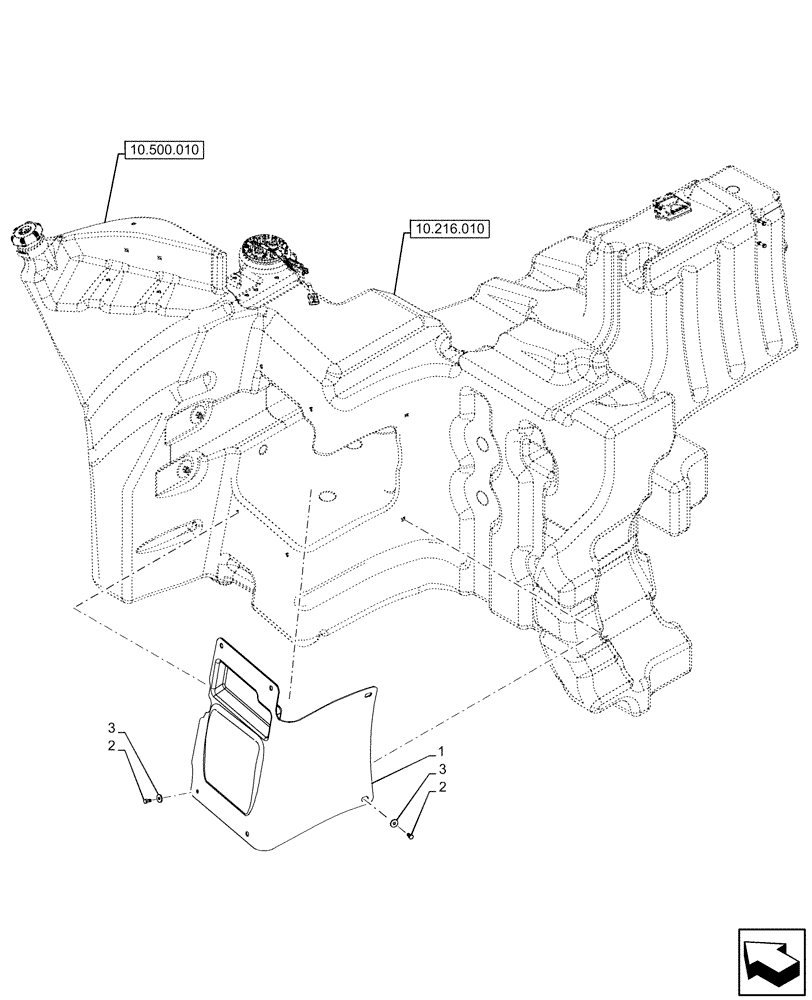

Схема запчастей Case IH OPTUM 270 CVT - (10.216.080) - VAR - 758113 - FUEL TANK, COVER, DRAWBAR, ANTILOCK BRAKING SYSTEM (ABS) (10) - ENGINE
10.216.010
1
3
2
3
2
10.500.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47730271

COVER ASSY

1шт.

2

412555

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

6шт.

3

12647004

WASHER,8.15mm ID x 25mm OD x 2.5mm Thk

6шт.
