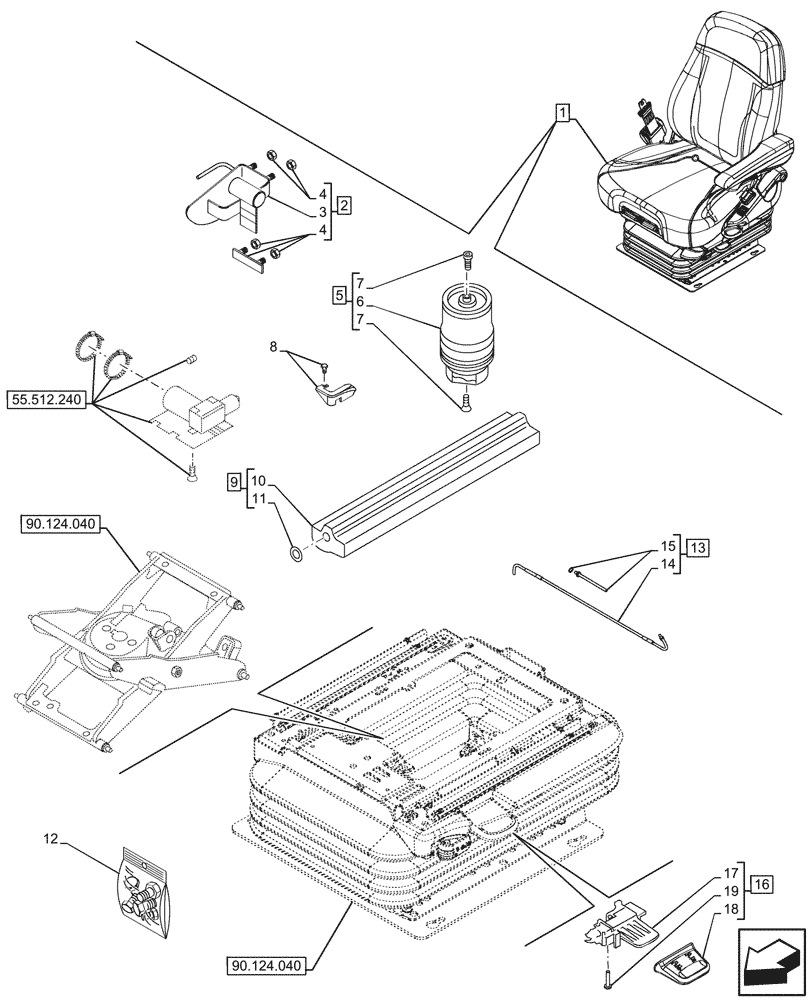

Запчасти Case IH OPTUM 270 CVT (90.124.050) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, DAMPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, Comfort Pack 1, Incl 2 - 19

1шт.

See also Driver Seat Components in Figure 55.512.240, 55.512.250, 90.124.020, 90.124.030, 90.124.040, 90.151.170

1шт.

2

47891542

CONTROL

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Control, Incl in 2

1шт.

4

84280569

KIT

1шт.

5

84190972

SHOCK ABSORBER

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Shock Absorber, Incl in 5

1шт.

7

84191012

REPAIR KIT

1шт.

8

47891528

COVER

1шт.

9

84191082

SERVICE KIT

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Air Reservoir, Incl in 9

1шт.

11

47851518

SPRING

1шт.

12

84255282

KIT

1шт.

13

84191079

KIT

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Tube, Incl in 13

1шт.

15

84191016

REPAIR KIT

1шт.

16

47891538

CONTROL

ASSY, Incl 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Control, Incl in 16

1шт.

18

47891541

HANDLE

1шт.

19

84191017

REPAIR KIT

1шт.
