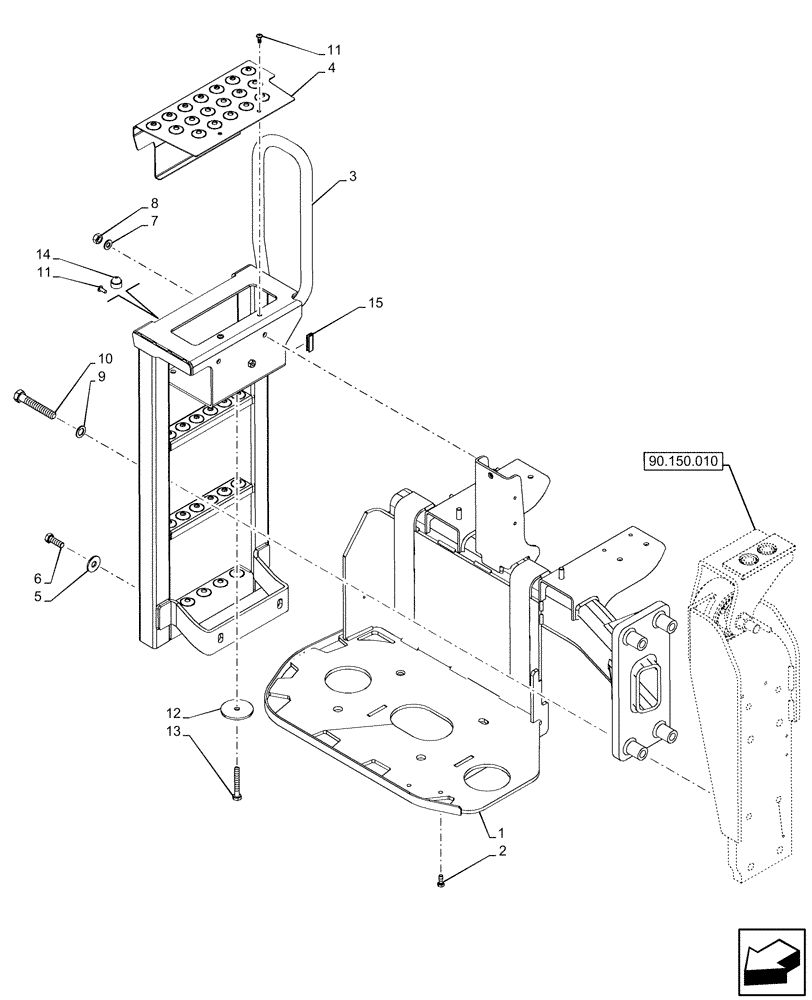

Запчасти Case IH OPTUM 270 CVT (90.118.020) - LADDER, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47841065

SUPPORT

1шт.

2

16043420

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

3

47878558

STEP

1шт.

4

47700104

STEP

1шт.

5

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

2шт.

6

87015758

BOLT,Hex, M12 x 35mm, Cl 8.8

2шт.

7

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

9

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

4шт.

10

15981621

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

4шт.

11

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

3шт.

12

84596792

WASHER,11.0mm ID x 70mm OD x 4.5mm Thk

1шт.

13

11107721

BOLT,Hex, M10 x 75mm, Cl 8.8

1шт.

14

87516433

CAP

1шт.

15

47551225

SEAL,15mm W x 8mm Thk x 158mm L

2шт.
