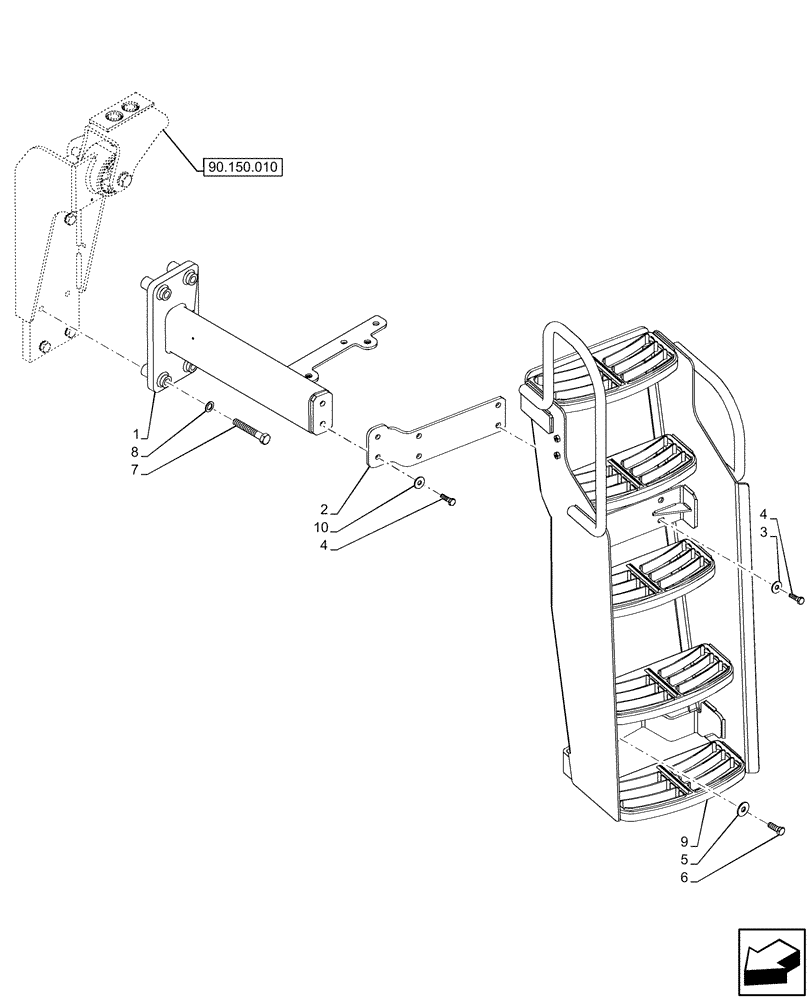

Запчасти Case IH OPTUM 270 CVT (90.118.010) - LADDER, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47898781

BEAM

1шт.

2

47898845

BRACKET

1шт.

3

86642464

WASHER,11mm ID x 30mm OD x 2.5mm Thk

4шт.

4

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

6шт.

5

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

2шт.

6

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

7

15981621

BOLT,Hex, M16 x 1.5 x 100mm, Cl 8.8

4шт.

8

13507701

WASHER,16.4mm ID x 27mm OD x 2mm Thk

4шт.

9

47898853

STEP

1шт.

10

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
