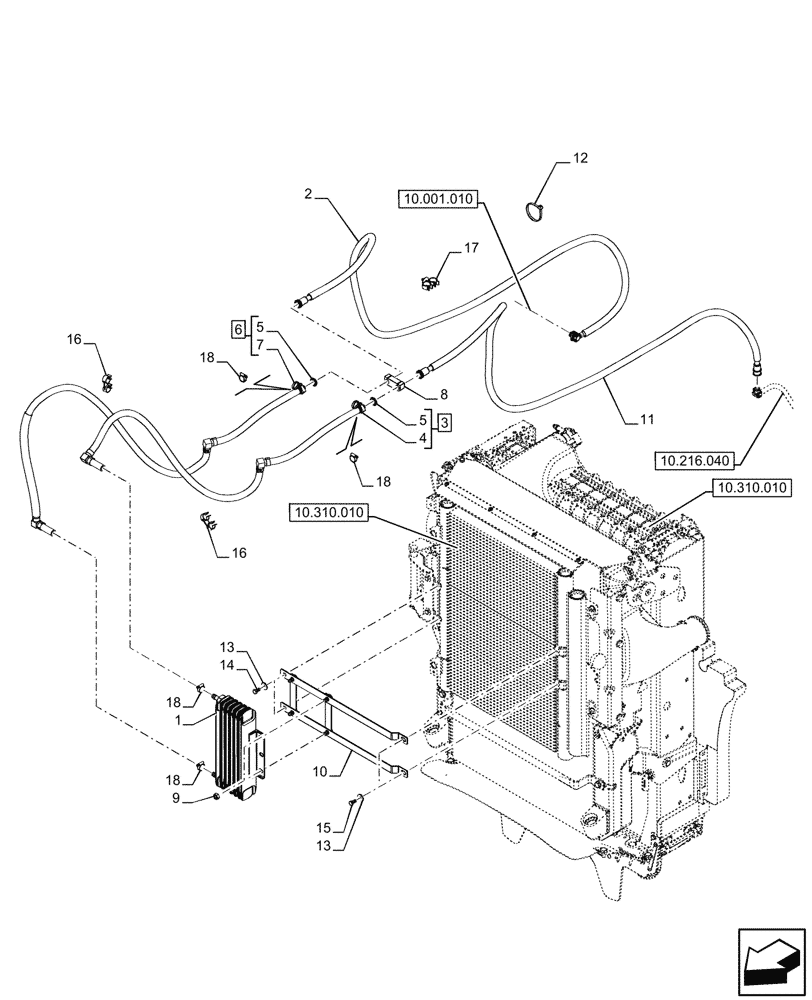

Запчасти Case IH OPTUM 270 CVT (10.216.050) - VAR - 391131, 758001 - FUEL LINE, COOLER (10) - ENGINE

1

84336275

FUEL COOLER

1шт.

2

47737858

TUBE

from Tank to Fuel Cooler Line

1шт.

3

47738520

FUEL HOSE,15.5mm ID

ASSY, from Fuel Cooler to Engine, Incl 4, 5 (Qty 1)

1шт.

4

NSS

NOT SOLD SEPARAT

Supply Fuel Tube, Incl in 3

1шт.

5

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

6

47881611

FUEL HOSE,15.5mm ID

ASSY, from Fuel Tank to Fuel Cooler, Incl 5 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Return Fuel Tube, Incl in 6

1шт.

8

47624319

GASKET,2x11mm HD x 15mm Thk x 53.5mm L

1шт.

9

16102211

NUT,M8, Cl 10

4шт.

10

47788668

BRACKET

1шт.

11

47763909

FUEL TUBE

from Fuel Cooler Line to Engine

1шт.

12

86566989

CABLE TIE,208mm L

3шт.

13

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

4шт.

14

10902134

BOLT,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

15

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

16

82035888

CLIP,16mm

2шт.

17

47618287

CLIP,16/17mm ID

1шт.

18

82039341

CLAMP,12mm - 22mm

4шт.
