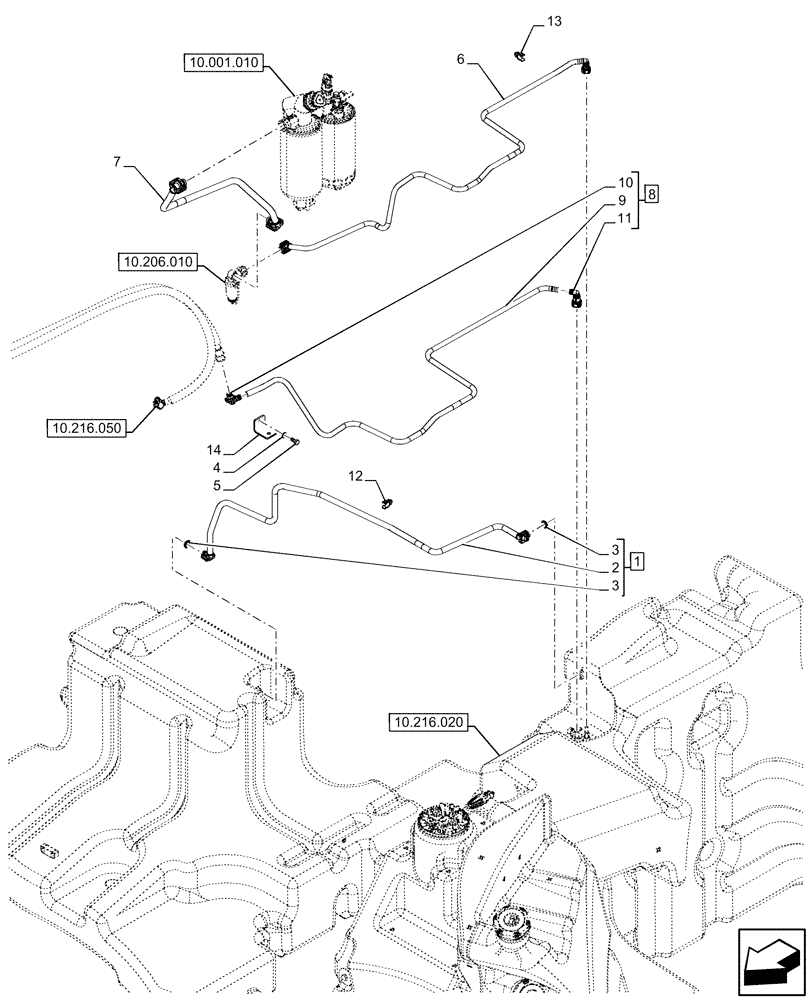

Запчасти Case IH OPTUM 270 CVT (10.216.040) - VAR - 391131, 758001 - FUEL LINE (10) - ENGINE

1

47734110

HOSE

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

84206573

O-RING,2.5mm Thk x 12mm ID, -70

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

5

15246821

BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

1шт.

6

47728269

PIPE

from Fuel Tank to Filter, Supply Line

1шт.

7

47576371

FUEL TUBE

1шт.

8

47737802

PIPE

ASSY, from Fuel Tank to Fuel Cooler Line, Incl 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Fuel Pipe, Incl in 8

1шт.

10

47888662

PIPE FITTING

1шт.

11

84367132

FITTING,5/16'

1шт.

12

47564501

MOUNT

3шт.

13

47556032

CLAMP,Top Entry, 12mm ID

3шт.

14

47763925

BRACKET

1шт.
