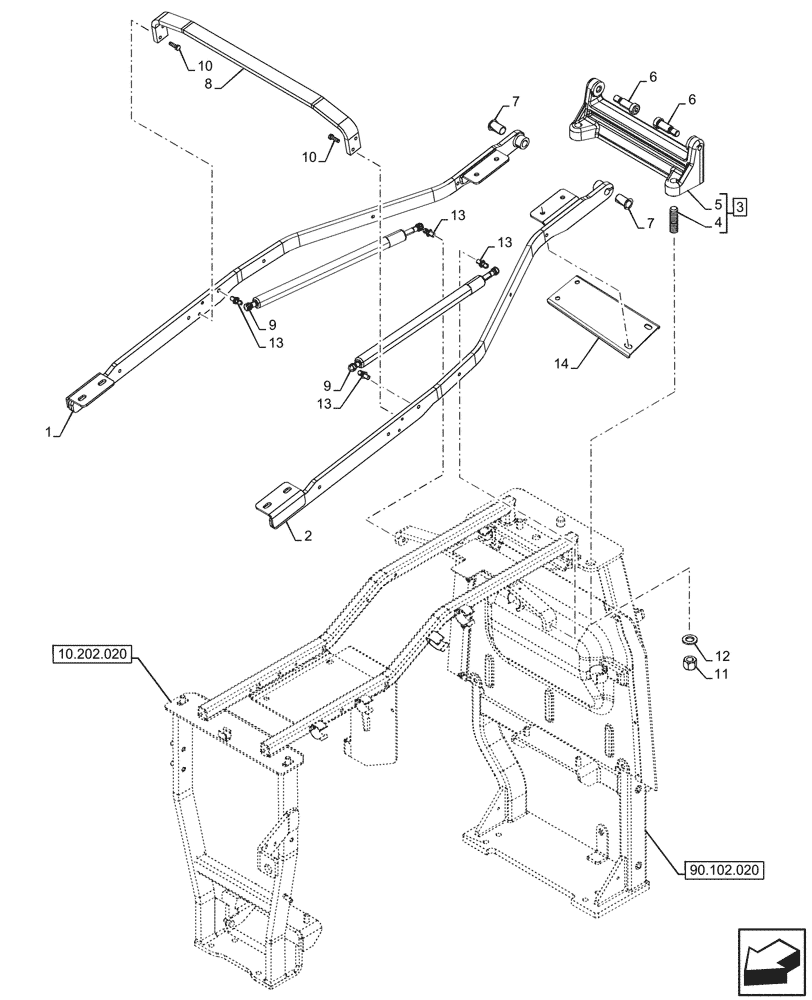

Запчасти Case IH OPTUM 270 CVT (90.102.030) - VAR - 391215, 391216, 391217, 758207, 758208, 758209, 758210, 758211 - ENGINE HOOD, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47707164

BRACKET

1шт.

2

47698868

BRACKET

1шт.

3

47788684

HINGE

ASSY, Incl 4, 5

1шт.

4

11800430

STUD,M16 x 1.5 x 35mm

2шт.

5

NSS

NOT SOLD SEPARAT

Hinge, Incl in 3

1шт.

6

89845583

BOLT,Hex, 26.05mm ID x 50.8mm L

2шт.

7

89846307

NYLON BEARING,.626" ID x .937" OD x 1.155" L

2шт.

8

47707191

CROSSMEMBER

1шт.

9

47732448

GAS STRUT

2шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

11

15504021

NUT,M16 x 1.5

2шт.

12

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

13

83952214

BALL STUD,M8 x 29.5mm OAL

4шт.

14

47930564

BRACKET

1шт.
