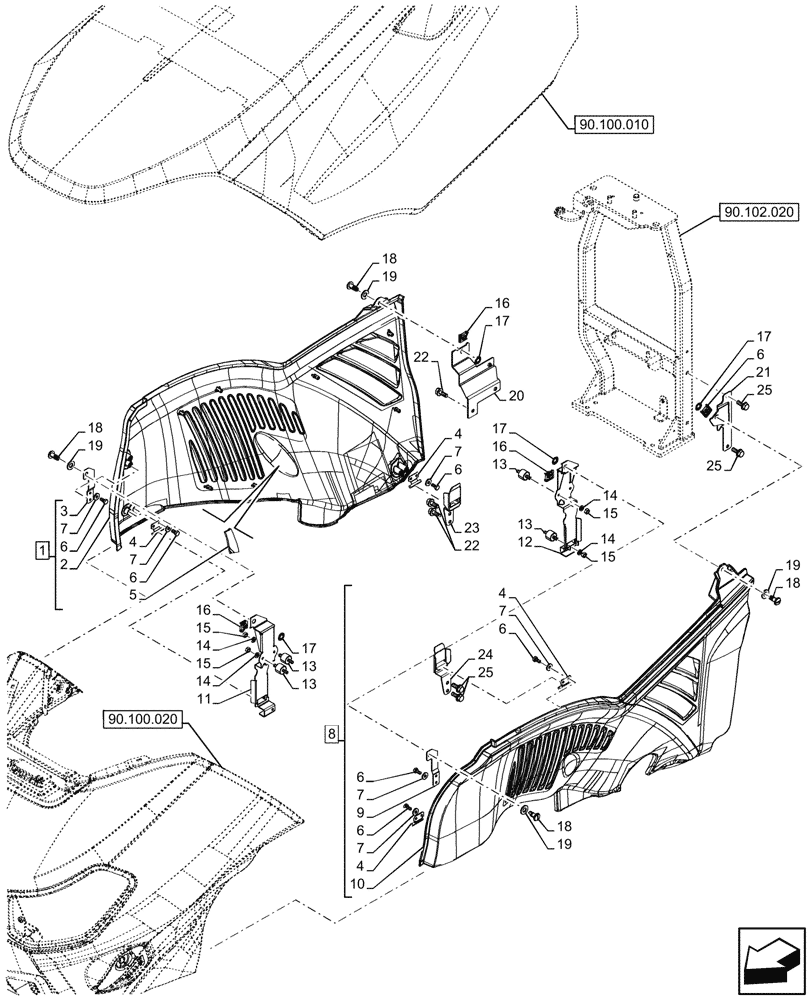

Запчасти Case IH OPTUM 270 CVT (90.100.030) - VAR - 391216, 758207, 758208, 758210 - HOOD, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47778128

SIDE PANEL

ASSY, Front RH, Incl 2, 3, 4 (Qty 2), 5, 6 (Qty 6), 7 (Qty 6)

1шт.

2

NSS

NOT SOLD SEPARAT

Side Panel, RH, Incl in 1

1шт.

3

47740734

BRACKET

1шт.

4

47756964

BRACKET

4шт.

5

47734262

SEAL,25mm W x 5mm Thk x 70mm L

1шт.

6

10902111

SCREW,M6 x 14

M6 x 14

12шт.

7

12647621

WASHER,6.15mm ID x 16mm OD x 2mm Thk

12шт.

8

47778112

SIDE PANEL

ASSY, Front LH, Incl 4 (Qty 2), 6 (Qty 6), 7 (Qty 6), 9, 10

1шт.

9

47756965

BRACKET

Front Upper, LH

1шт.

10

NSS

NOT SOLD SEPARAT

Side Panel, LH, Incl in 8

1шт.

11

47776581

BRACKET

Front RH

1шт.

12

47776582

BRACKET

Front LH

1шт.

13

47800277

INSULATOR

8шт.

14

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

8шт.

15

9706755

NUT,M6, Cl 8

8шт.

16

87313182

CLIP

4шт.

17

87313183

RETAINER

4шт.

18

87585593

FASTENER,9mm ID x 18mm OD

4шт.

19

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

20

47820184

BRACKET

Rear RH

1шт.

21

47776546

BRACKET

Rear LH

1шт.

22

16287134

FLANGE BOLT,Hex, M8 x 20mm, Cl 10.9

3шт.

23

47776576

BRACKET

Rear RH

1шт.

24

47776569

BRACKET

Rear LH

1шт.

25

86624996

BOLT,Hex Flange, M6 x 16.00mm, Cl 8.8, BZN

4шт.
