Запчасти Case IH OPTUM 270 CVT (10.206.010) - VAR - 391131, 758001 - FUEL FILTER (10) - ENGINE

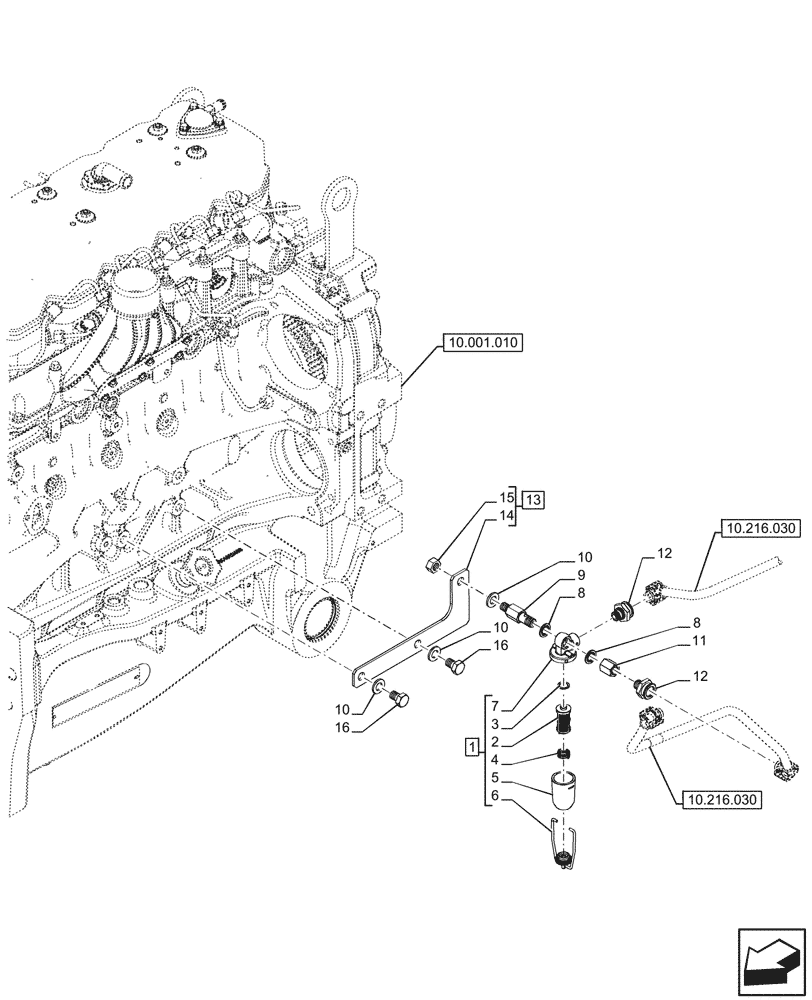

Схема запчастей Case IH OPTUM 270 CVT - (10.206.010) - VAR - 391131, 758001 - FUEL FILTER (10) - ENGINE
10.216.030
4
3
5
16
10
11
6
9
14
2
8
8
1
7
12
15
13
12
10
10
16
10.001.010
10.216.030

Артикул

Название

Примечание

Количество

1

84328562

FILTER ASSY,40mm OD x 109mm L, M14 x 1.5, 350 Microns

ASSY, Incl 2 - 7

1шт.

2

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre Filter

1шт.

3

84328596

SEAL

1шт.

4

84328599

SPRING

1шт.

5

84328600

FILTER BOWL,40mm OD x 109mm L, M14 x 1.5, 350 Microns

1шт.

6

84328601

CLAMP BRACKET

1шт.

7

NSS

NOT SOLD SEPARAT

Filter Cap, Incl in 1

1шт.

8

87590622

SEALING WASHER,14.7mm ID x 22mm OD x 1.5mm Thk

2шт.

9

87585662

HYD CONNECTOR,M12 x 1.75 x M14 x 1.5

1шт.

10

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

3шт.

11

84364450

FLANGE NUT,Hex, M14 x 1.5, 22.5 Thd

1шт.

12

47440871

HYD CONNECTOR,M14 x 1.5 x 16mm L

2шт.

13

87591419

HOLDER

ASSY, Black, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Bracket, Incl in 13

1шт.

15

86000021

BEARING LOCK NUT,M12, Cl 8

1шт.

16

11112121

SCREW,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 16
