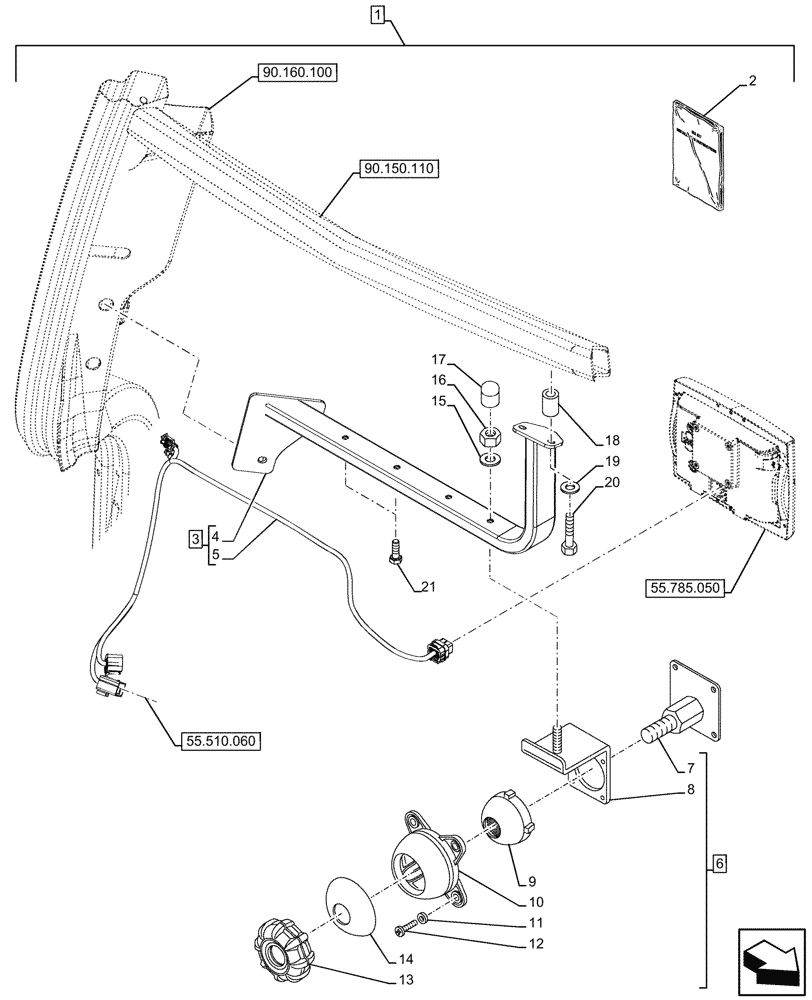

Запчасти Case IH OPTUM 270 CVT (88.100.090[02]) - DIA KIT, BRACKET MONITOR EQUIPMENT, HARNESS (88) - ACCESSORIES

1

719343014

DIA KIT, TRACTOR

Bracket and HRNS Installation Codi Screen, Incl 2 - 21

1шт.

2

47867381

INSTRUCTION

1шт.

3

84361958

HOLDER

ASSY, Incl 4, 5

1шт.

4

84340967

SUPPORT

1шт.

5

NSS

NOT SOLD SEPARAT

Harness SWDC, Incl in 3

1шт.

6

87614599

SUPPORT

ASSY, Incl 7 - 14

1шт.

7

87565605

SUPPORT

1шт.

8

87614600

BRACKET

1шт.

9

87614603

CUP,Black

1шт.

10

87614602

BASE

1шт.

11

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

4шт.

12

86585711

SCREW,Phillips Drive, Pan HD, M6 x 10mm, Cl 4.8

4шт.

13

87316701

KNOB

1шт.

14

87316706

CUP,23mm ID x 68.6mm OD, Black

1шт.

15

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

16

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

1шт.

17

5132136

CAP COVER,M8

2шт.

18

87681589

SPACER,8mm ID x 11mm OD x 16mm L

2шт.

19

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

20

16044021

SCREW,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

21

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.
