(88.100.033[02]) - DIA KIT, AIR BRAKE, COUPLING, UNIVERSAL

Запчасти Case IH OPTUM 270 CVT (88.100.033[02]) - DIA KIT, AIR BRAKE, COUPLING, UNIVERSAL (88) - ACCESSORIES

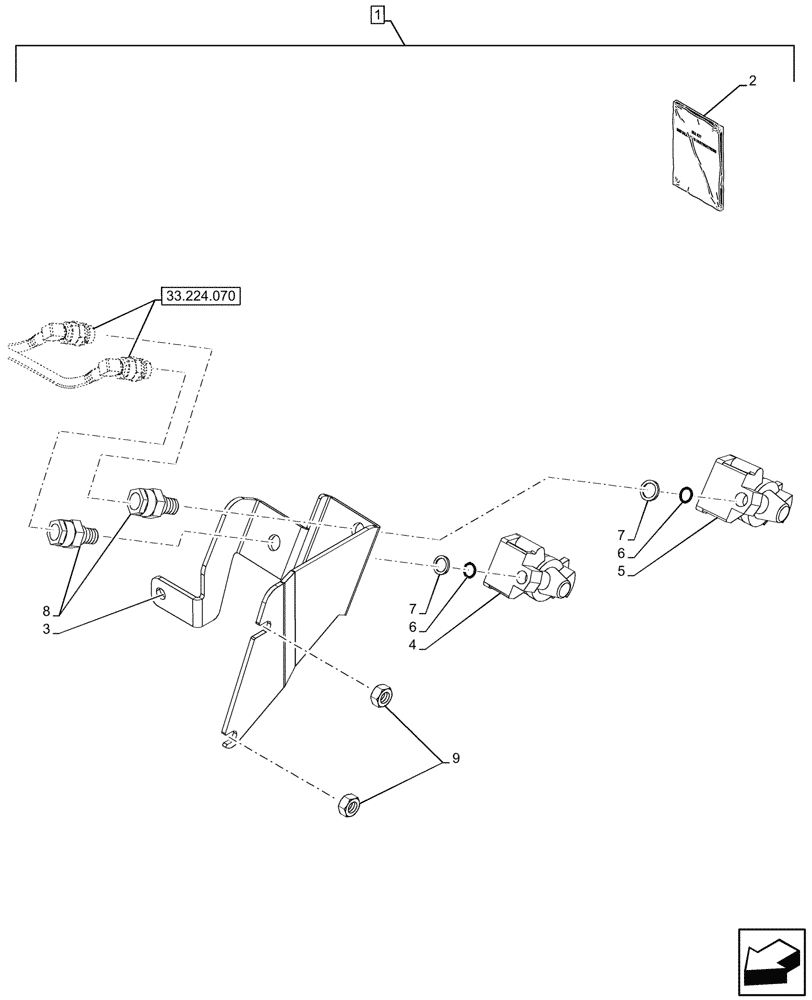

Схема запчастей Case IH OPTUM 270 CVT - (88.100.033[02]) - DIA KIT, AIR BRAKE, COUPLING, UNIVERSAL (88) - ACCESSORIES
33.224.070
1
2
6
7
3
8
7
9
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

718266044

DIA KIT, TRACTOR

Universal Pneumatic Air Brake Finishing Kit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47855081

INSTRUCTION

1шт.

3

47954621

BRACKET

Air Brake, Universal Coupler

1шт.

4

82001019

COUPLING

1шт.

5

82001020

COUPLING

1шт.

6

87678125

O-RING,2mm Thk x 14mm ID, 70 Duro

2шт.

7

87678124

WASHER,Backing, 16.10mm, 19.50mm ID x 22.00mm OD x 2.60mm

2шт.

8

87678128

ADAPTER

M16 to NG12

2шт.

9

11702911

NUT,M12, Cl 8, ZND

2шт.
