(55.988.070) - VAR - 391130, 758000, 759041 - EXHAUST SYSTEM, SENSOR

Запчасти Case IH OPTUM 270 CVT (55.988.070) - VAR - 391130, 758000, 759041 - EXHAUST SYSTEM, SENSOR (55) - ELECTRICAL SYSTEMS

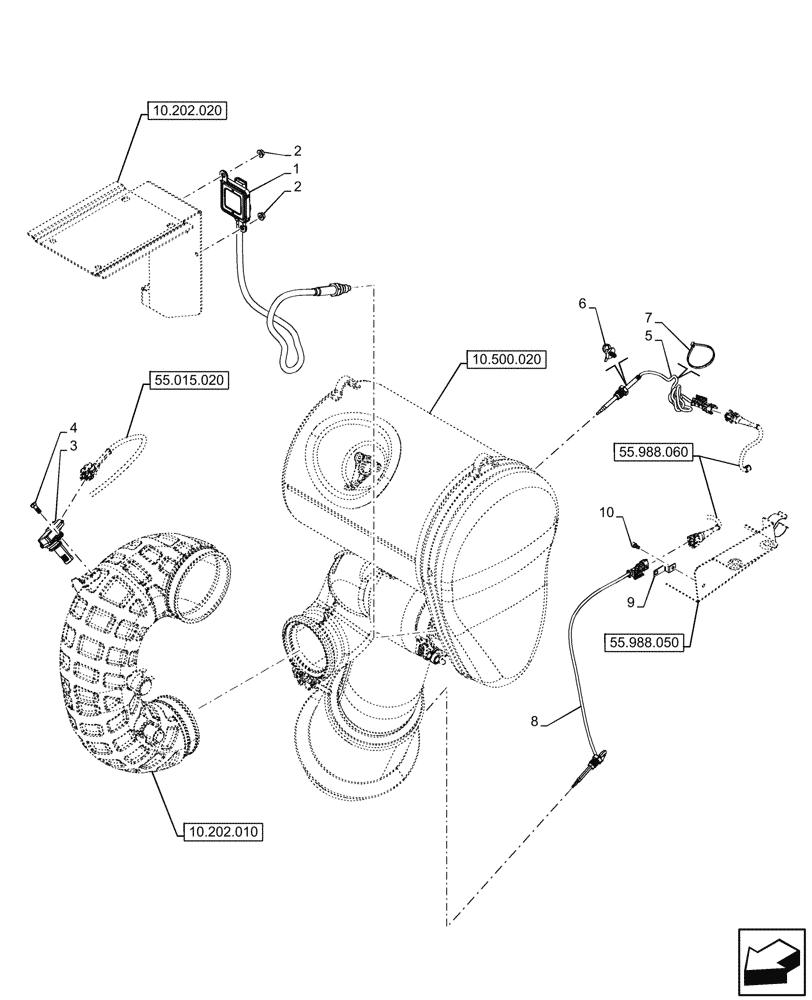

Схема запчастей Case IH OPTUM 270 CVT - (55.988.070) - VAR - 391130, 758000, 759041 - EXHAUST SYSTEM, SENSOR (55) - ELECTRICAL SYSTEMS
10.202.020
5
9
4
2
1
8
3
10
7
6
2
10.202.010
55.015.020
10.500.020
55.988.050
55.988.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84422750

SENSOR,NOx, 12V, 5 Pin, 915mm L

Nox 12V, 915mm

1шт.

2

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

2шт.

3

87482355

SENSOR

Humidity

1шт.

4

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

5

47478995

SENSOR

Temperature, EGT, 50mm Closed Straight

1шт.

6

14560187

COLLAR,199mm L

1шт.

7

82033028

CABLE TIE,170mm L

1шт.

8

47478880

TEMPERATURE SENDER,50mm, Closed

Temperature, EGT, 50mm Closed

1шт.

9

47564478

SUPPORT

1шт.

10

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

1шт.
