Запчасти Case IH OPTUM 270 CVT (55.988.050) - VAR - 338420, 338452, 392370 - SELECTIVE CATALITIC REDUCTION, SENSOR (55) - ELECTRICAL SYSTEMS

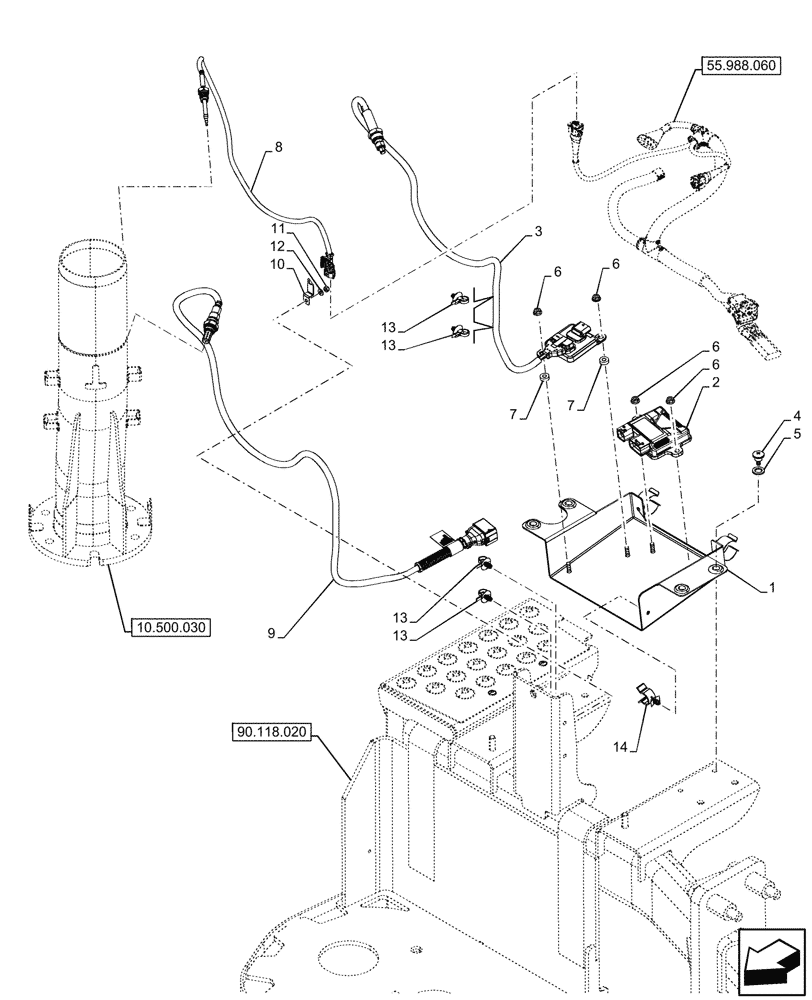

Схема запчастей Case IH OPTUM 270 CVT - (55.988.050) - VAR - 338420, 338452, 392370 - SELECTIVE CATALITIC REDUCTION, SENSOR (55) - ELECTRICAL SYSTEMS
10.500.030
5
9
7
7
13
13
6
11
3
13
8
13
4
6
10
14
2
1
6
12
6
55.988.060
90.118.020

Артикул

Название

Примечание

Количество

1

47841029

SUPPORT

1шт.

2

47368959

ECU

NH3

1шт.

3

84422750

SENSOR,NOx, 12V, 5 Pin, 915mm L

Nox 12V, 915mm

1шт.

4

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

4шт.

5

13507401

WASHER,12.2mm ID x 20mm OD x 2mm Thk

4шт.

6

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

4шт.

7

13604011

SPACER,6.5mm ID x 15mm OD x 5mm L

2шт.

8

47478995

SENSOR

Temperature, EGT, 50mm Closed Straight

1шт.

9

47520142

SENSOR,1000mm L

NH3 1000mm

1шт.

10

47564478

SUPPORT

Temperature Sensor

1шт.

11

87016571

NUT,M5, Cl 5

1шт.

12

12637804

WASHER,5.15mm ID x 11mm OD x 1mm Thk

1шт.

13

82033028

CABLE TIE,170mm L

4шт.

14

47564504

CLAMP,Top Entry, 20mm ID, Black

1шт.

Выбрано товаров: 14
