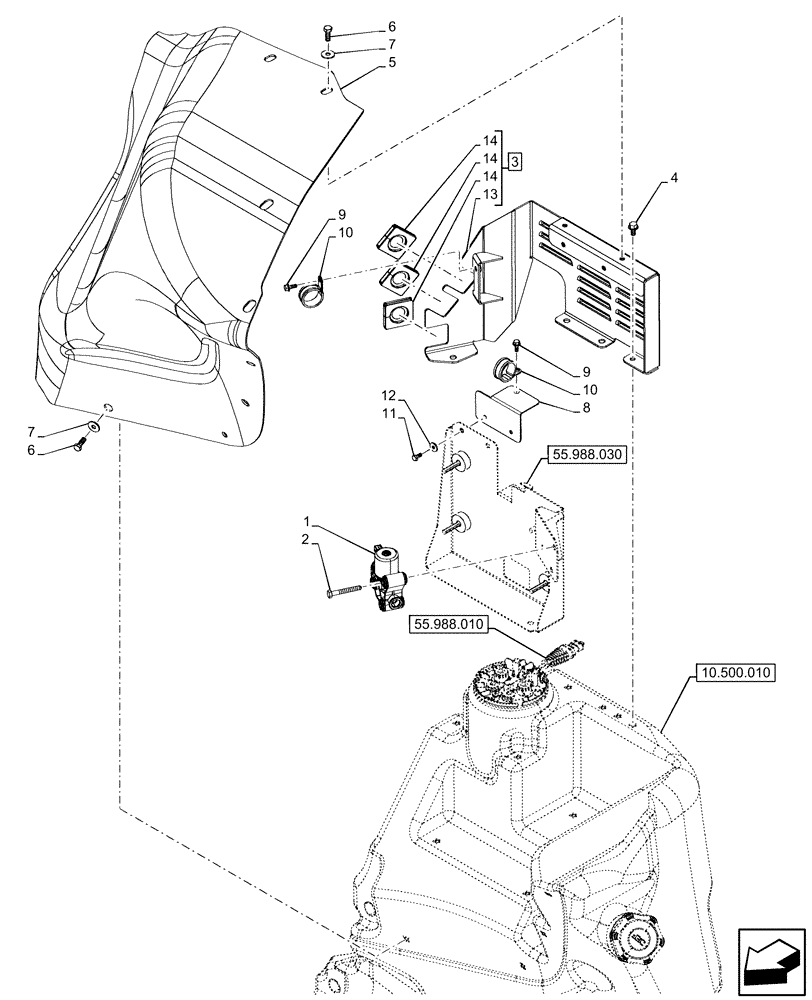

Запчасти Case IH OPTUM 270 CVT (55.988.040) - VAR - 391130, 758000, 759041 - DEF LINES, VALVE, HEATER (55) - ELECTRICAL SYSTEMS

1

84483089

HEATER,12V

Valve 12V

1шт.

2

15213721

BOLT,Hex, M8 x 60mm, Cl 8.8, Full Thd

3шт.

3

47731908

SUPPORT

ASSY, ECU, Incl 13, 14

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

5

47730269

COVER

1шт.

6

86625001

BOLT,Hex, M8 x 22mm, Cl 8.8, Full Thd

8шт.

7

13578301

WASHER,8.15mm ID x 24mm OD x 2mm Thk

8шт.

8

47746430

BRACKET

Urea Lines

1шт.

9

87307790

FLANGE BOLT,Hex, M6 x 16mm, Cl 8.8

2шт.

10

10448890

CLAMP,36mm, Coat, P Type

2шт.

11

10902121

SCREW,Hex, M6 x 14mm, Cl 8.8

2шт.

12

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

2шт.

13

NSS

NOT SOLD SEPARAT

Support, Incl in 3

1шт.

14

47377358

GROMMET,25mm ID, Black

3шт.
