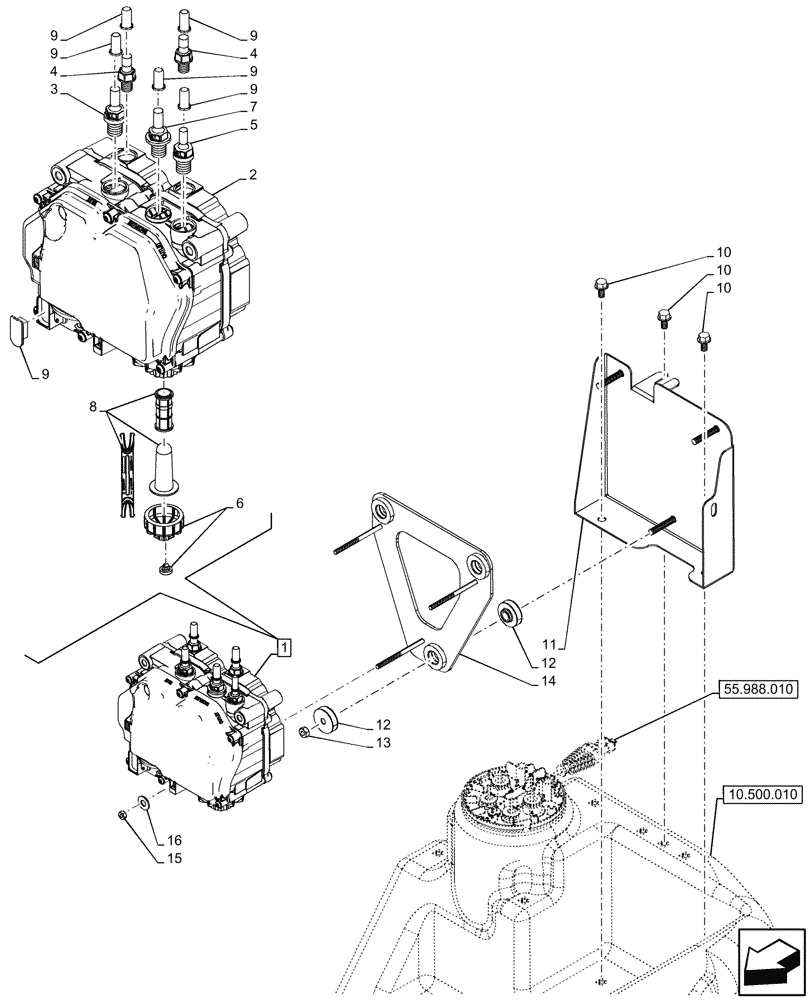

Запчасти Case IH OPTUM 270 CVT (55.988.030) - VAR - 391130, 758000, 759041 - DEF LINES, ELECTRONIC CONTROL UNIT (55) - ELECTRICAL SYSTEMS

1

47565934

ECU

ASSY, Denox 2.2 Supply Module, 12V, Incl 2 - 9

1шт.

1

47565934R

REMAN ELECT CONTROL

Denox Supply

1шт.

1

47565934C

CORE-ELECTRONIC CONT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

ECU, Incl in 1

1шт.

3

47364232

SERVICE KIT

Inlet Connector

1шт.

4

47572557

KIT

Coolant Connector

2шт.

5

47364246

KIT

Outlet Connector

1шт.

6

47364064

KIT

Filter Cover

1шт.

7

47364249

KIT

Backflow Connector

1шт.

8

47364243

FILTER

Main, Denox Supply Module

1шт.

9

47364259

KIT

Protective Cap

1шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

11

47715697

BRACKET

1шт.

12

47381256

RUBBER BLOCK,8.5mm ID x 36mm OD x 10mm Thk

6шт.

13

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

3шт.

14

47377322

BASE PLATE

1шт.

15

12574211

NUT,M6 x 1, Cl 8

3шт.

16

12647701

WASHER,6.15mm ID x 21mm OD x 1mm Thk

3шт.
