Запчасти Case IH OPTUM 270 CVT (55.911.040) - VAR - 758806 - GPS RECEIVER, FULL AG NAV GPS L3-450-470MHZ (55) - ELECTRICAL SYSTEMS

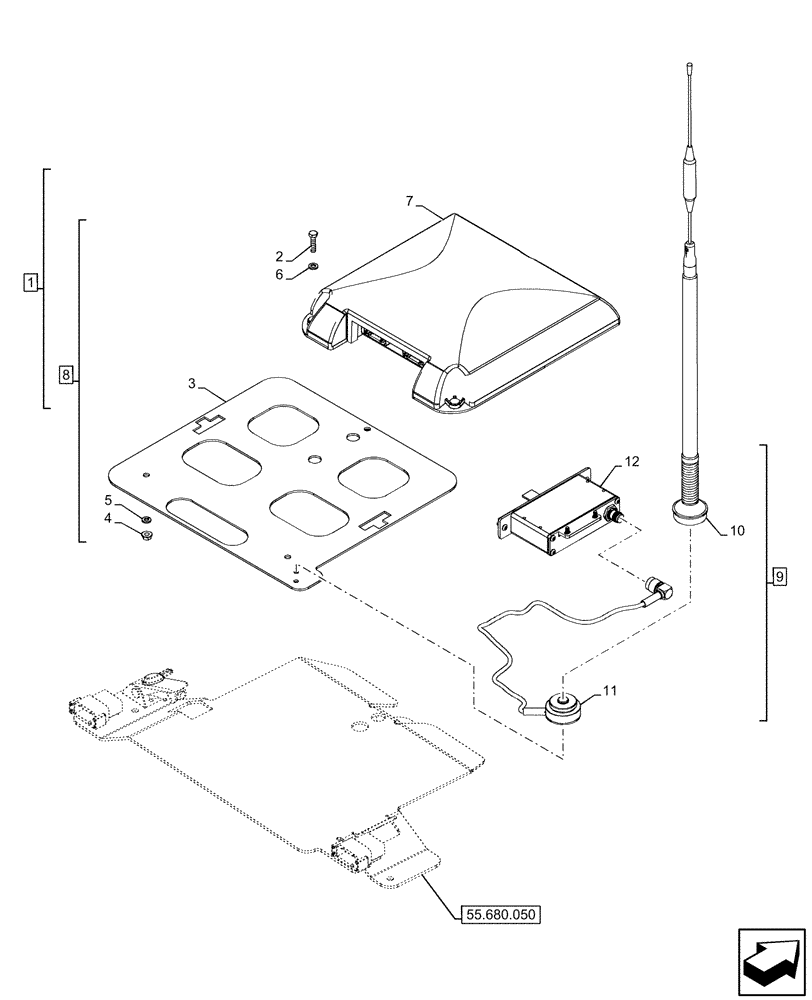

Схема запчастей Case IH OPTUM 270 CVT - (55.911.040) - VAR - 758806 - GPS RECEIVER, FULL AG NAV GPS L3-450-470MHZ (55) - ELECTRICAL SYSTEMS
55.680.050
12
11
6
9
7
4
10
2
8
3
1
5

Артикул

Название

Примечание

Количество

1

47866750

GPS RECEIVER

ASSY, Incl 2 - 8

1шт.

2

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

3шт.

Without FM Radio Receiver

1шт.

2

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

With FM Radio Receiver

1шт.

3

87496985

MOUNTING PLATE

1шт.

4

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

NSS

NOT SOLD SEPARAT

Receiver Module, Incl in 1

1шт.

8

87491301

MOUNTING PLATE

ASSY, Incl 2 - 6

1шт.

9

47389435

GPS RECEIVER

ASSY, Incl 10 - 12

1шт.

10

47410169

ANTENNA

1шт.

11

47407028

CABLE

1шт.

12

NSS

NOT SOLD SEPARAT

Radio Receiver, Incl in 9

1шт.

Выбрано товаров: 15
