(55.785.070) - VAR - 758769, 758770, 758771, 758772, 758773, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ISOBUS SOCKET

Запчасти Case IH OPTUM 270 CVT (55.785.070) - VAR - 758769, 758770, 758771, 758772, 758773, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ISOBUS SOCKET (55) - ELECTRICAL SYSTEMS

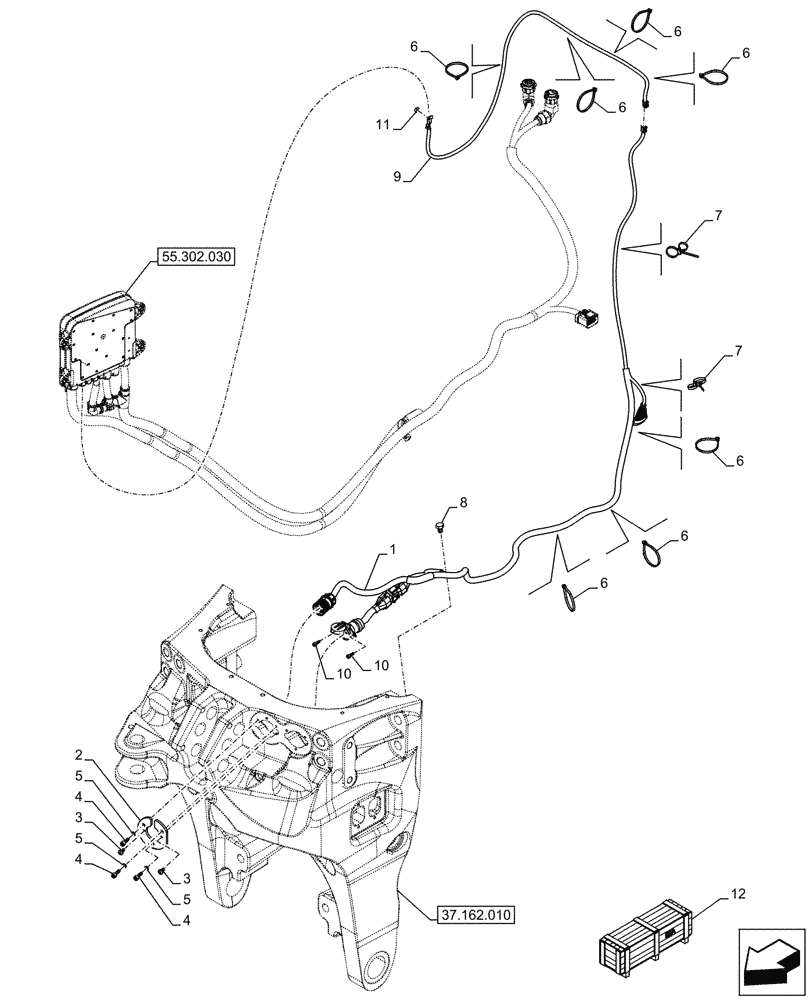

Схема запчастей Case IH OPTUM 270 CVT - (55.785.070) - VAR - 758769, 758770, 758771, 758772, 758773, 759304, 759305, 759306, 759307, 759308 - FRONT, 3 POINT HITCH, ISOBUS SOCKET (55) - ELECTRICAL SYSTEMS
37.162.010
3
10
6
6
5
5
10
8
6
12
6
3
6
4
4
9
1
11
7
7
6
6
5
4
2
55.302.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47874638

WIRE HARNESS

Front Socket

1шт.

2

47812642

BRACKET

1шт.

3

13274914

SCREW,Pan, M5 x 35mm L

3шт.

4

14304221

HEX SOC SCREW,M5 x 16mm, Cl 8.8, Full Thd

3шт.

5

87698783

WASHER,5.3mm ID x 8.9mm OD x 1.2mm Thk

3шт.

6

14560187

COLLAR,199mm L

7шт.

7

82013031

CABLE TIE,193mm L

2шт.

8

16043021

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

9

47802811

WIRE HARNESS

FHPL

1шт.

10

13273911

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 5.8, Full Thd

2шт.

11

86512495

FLANGE NUT,Hex, M5, Cl 8

1шт.

12

731033014

DIA KIT, TRACTOR

Front Hydraulic Power Lift, Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

12

731005014

DIA KIT, TRACTOR

Electrical Socket (3 Pin and 7 Pin), Incl 1 - 10

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
