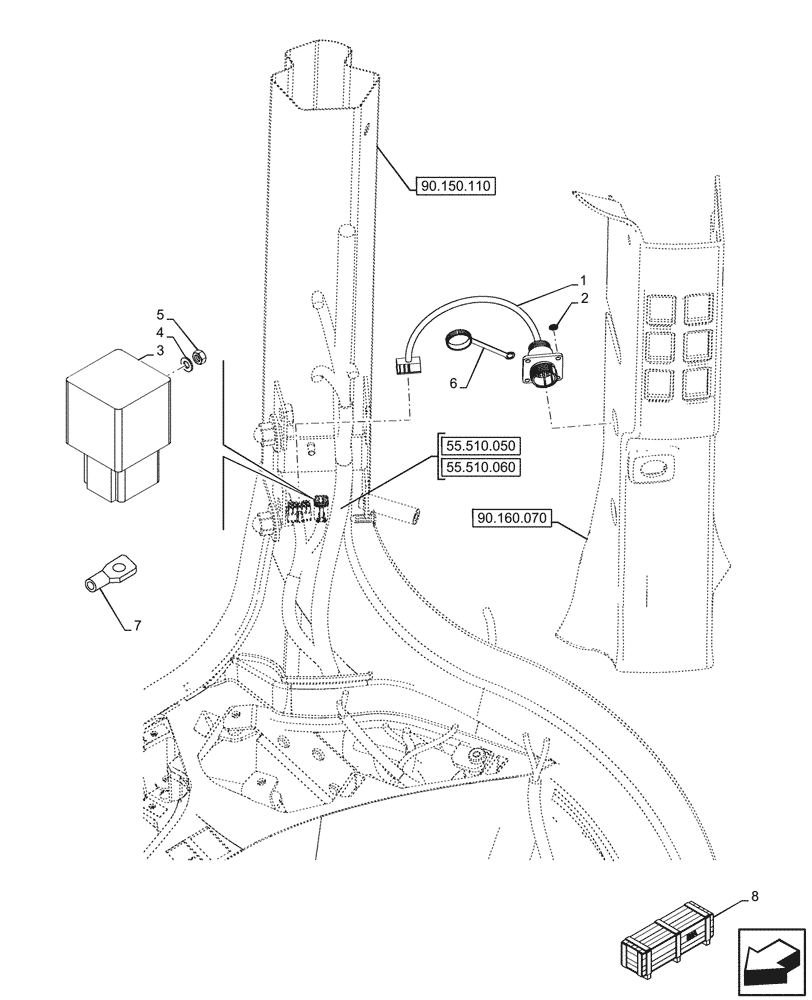

Запчасти Case IH OPTUM 270 CVT (55.785.020) - VAR - 758161, 758964, 758965 - ISOBUS SOCKET, HARNESS, RELAY (55) - ELECTRICAL SYSTEMS

1

47539104

WIRE HARNESS

Socket 9 Pin Isobus Joystick

1шт.

2

47783574

NUT,Round, 3.0mm ID x 11.3mm OD, 1.5mm Thd

4шт.

3

84577117

RELAY,12V, 2A

Isobus, DPST, 12V

1шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

1шт.

5

15896211

NUT,M6, Cl 8

1шт.

6

47746852

DUST CAP,Black

1шт.

7

84384514

ELEC CONNECTOR

1шт.

8

719344124

DIA KIT, TRACTOR

Isobus CL 2 RR Breakaway Socket 11873, Incl 3 - 5, 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
