(55.785.010) - VAR - 758161, 758964, 758965 - ISOBUS SOCKET, HARNESS

Запчасти Case IH OPTUM 270 CVT (55.785.010) - VAR - 758161, 758964, 758965 - ISOBUS SOCKET, HARNESS (55) - ELECTRICAL SYSTEMS

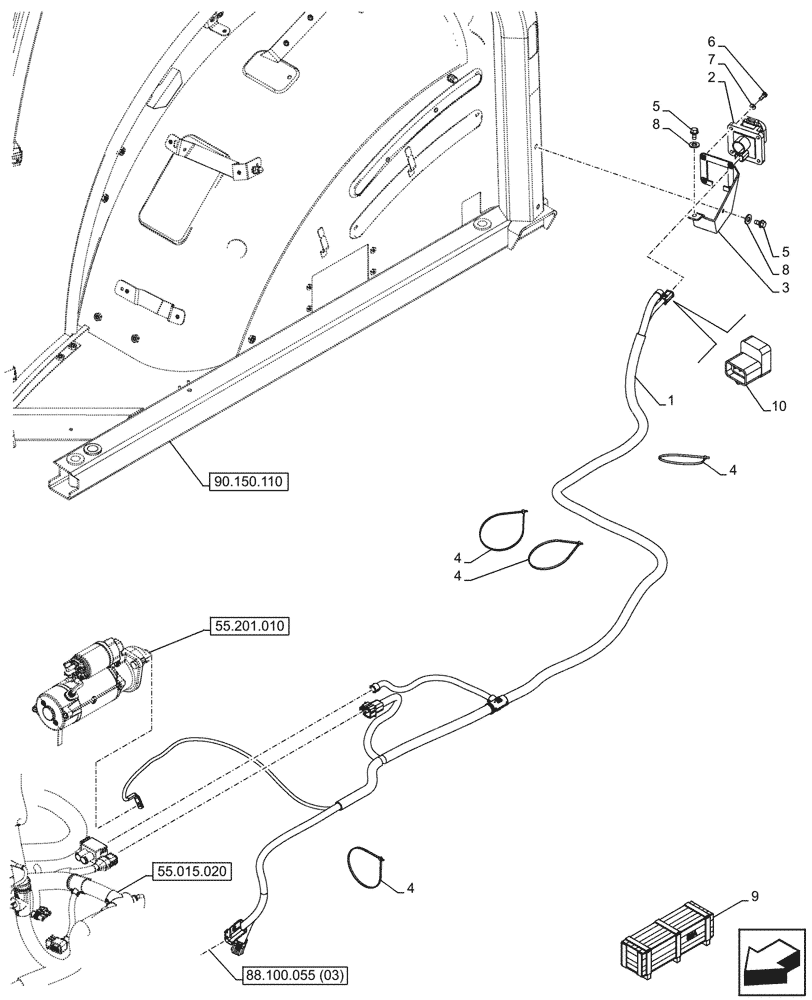

Схема запчастей Case IH OPTUM 270 CVT - (55.785.010) - VAR - 758161, 758964, 758965 - ISOBUS SOCKET, HARNESS (55) - ELECTRICAL SYSTEMS
90.150.110
5
8
6
4
2
4
8
5
9
7
1
4
10
3
4
55.201.010
55.015.020
88.100.055 (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47875863

WIRE HARNESS

Rear Isobus 2 CCM HD

1шт.

2

87522416

ELEC CONNECTOR,Female, 5 Cavities

Isobus Breackway, Rear

1шт.

3

47892406

BRACKET

Isobus Socket

1шт.

4

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

6

14305321

HEX SOC SCREW,M6 x 20mm, Cl 8.8

4шт.

7

10571579

LOCK WASHER,M6

4шт.

8

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

9

719344124

DIA KIT, TRACTOR

Isobus CL 2 RR Breakaway Socket 11873, Incl 1 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

10

87601142

ELEC CONNECTOR,Female, 6 Cavities

1шт.
