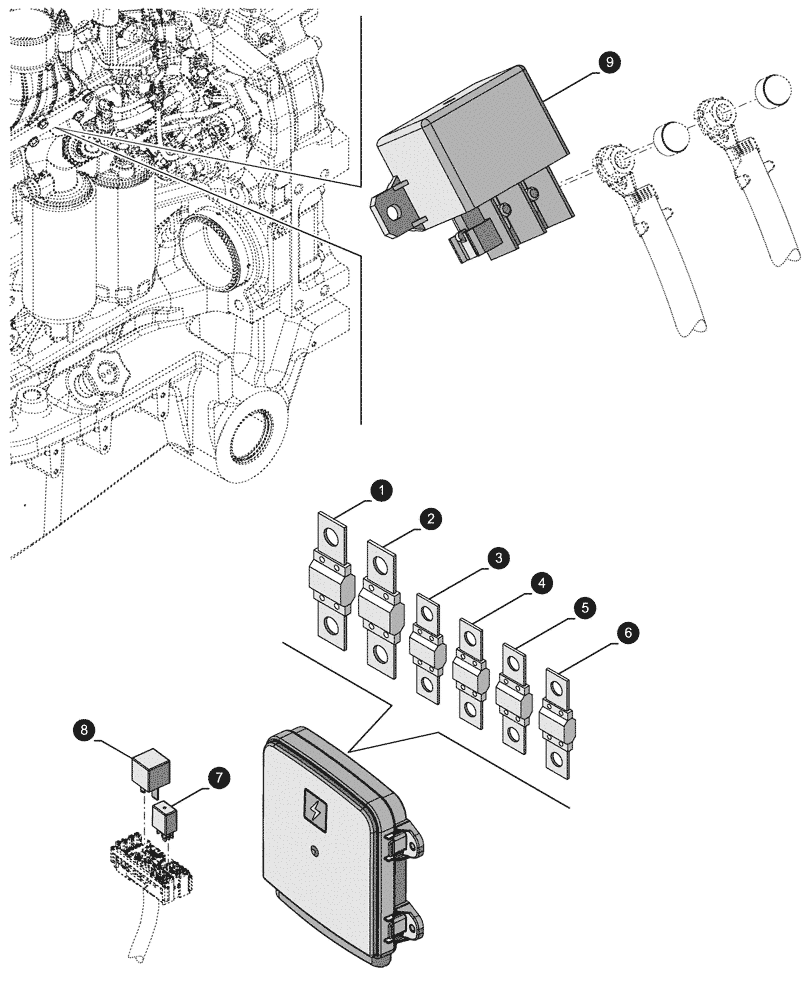

Запчасти Case IH OPTUM 270 CVT (05.100.043[04]) - MAINTENANCE PARTS - FUSES, RELAY (05) - SERVICE & MAINTENANCE

1

8501311

FUSE,150A, Megaval

F1, Main fuse (power supply to maxi fuse block)

1шт.

2

440572A1

FUSE,100A, Megaval

F2, Grid heater

1шт.

3

84267528

FUSE,30A, Midival

F3, Not used

1шт.

4

84320118

FUSE,40A, Midival

F4, Crank relay (permanent batter power supply)

1шт.

5

84320118

FUSE,40A, Midival

F5, Power socket 40A - Front

1шт.

6

84320118

FUSE,40A, Midival

F6, Not used

1шт.

7

84543528

RELAY,12V, 20A, Micro

K-051, Crank relay

1шт.

8

87341931

RELAY,Mini ISO, 12V, 70A

K-052, Start relay

1шт.

9

84127703

FUSE,15A, Mini, Blue

K-053, Grid heater relay

1шт.
