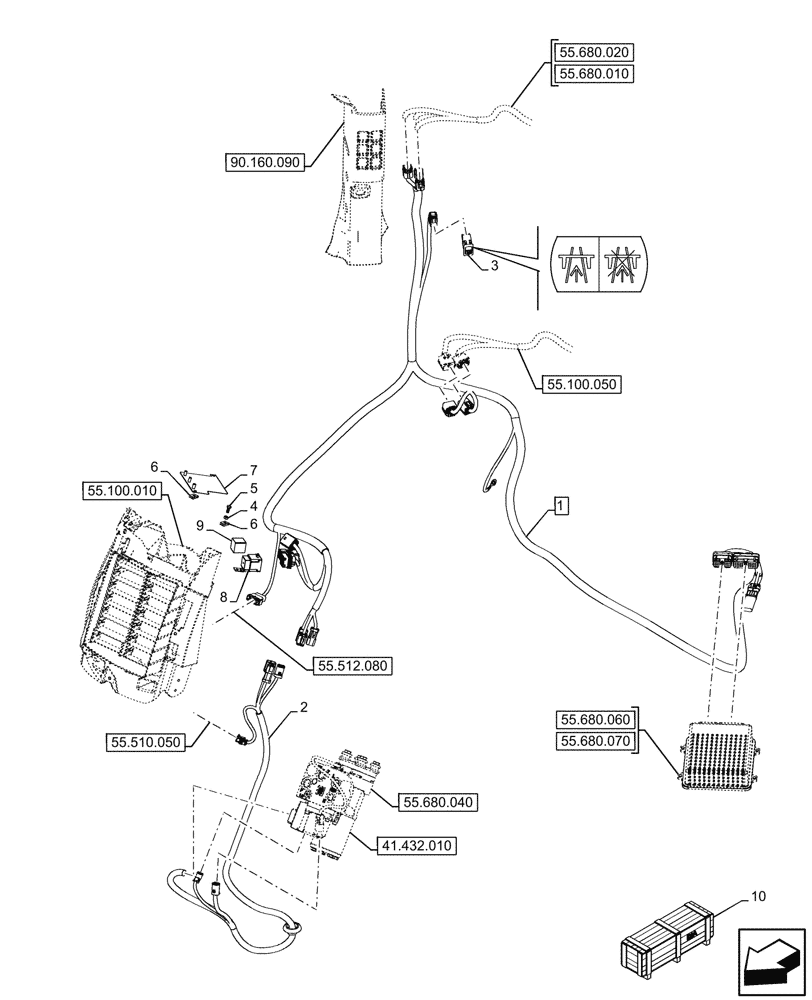

Запчасти Case IH OPTUM 270 CVT (55.680.030) - VAR - 758802, 758803, 758804, 758805, 758806, 758807, 758871 - AUTOGUIDANCE, HARNESS (55) - ELECTRICAL SYSTEMS
90.160.090
2
9
5
3
1
7
4
6
8
6
10
55.680.020
55.680.010
55.512.080
55.680.060
55.680.070
55.680.040
41.432.010
55.510.050
55.100.010
55.100.050
№
Артикул
Название
Примечание
Количество
1
47782231
WIRE HARNESS
ASSY, Automatic Guidance, Incl 9
1шт.
2
47874632
WIRE HARNESS
Automatic Guidance, Steering
1шт.
3
47637999
ROCKER SWITCH
Automatic Guidance
1шт.
4
15896211
NUT,M6, Cl 8
1шт.
5
10902124
SCREW,Hex, M6 x 14mm, Cl 8.8
2шт.
6
14371771
SPRING NUT,M6, U, 24.3mm long
2шт.
7
87744795
SUPPORT
1шт.
8
82017871
RELAY,12V, 20A
20A
1шт.
9
47580931
RELAY,12V, 2A
1шт.
10
710070434
DIA KIT, TRACTOR
Autoguidance Ready, Incl 1 - 9
1шт.
Valid for T7.290, T7.315 Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
