(55.680.010) - VAR - 391226 - GPS RECEIVER, WIRE HARNESS

Запчасти Case IH OPTUM 270 CVT (55.680.010) - VAR - 391226 - GPS RECEIVER, WIRE HARNESS (55) - ELECTRICAL SYSTEMS

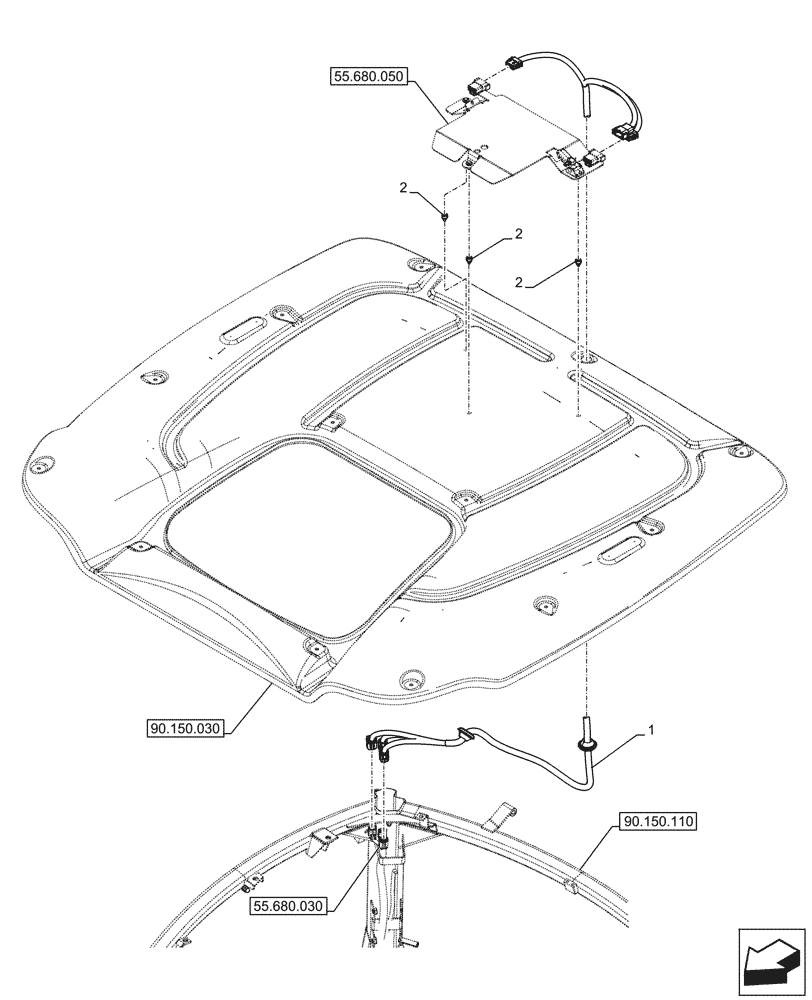

Схема запчастей Case IH OPTUM 270 CVT - (55.680.010) - VAR - 391226 - GPS RECEIVER, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
90.150.110
2
1
2
2
55.680.030
90.150.030
55.680.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47692584

WIRE HARNESS

Autoguidance

1шт.

2

14624587

PLUG,D 6.3 x 3

3шт.
