Запчасти Case IH OPTUM 270 CVT (55.522.030) - VAR - 758770, 758771, 758772, 758773, 739305, 739306, 739307, 739308 - FRONT PTO SWITCH, EXTERNAL (55) - ELECTRICAL SYSTEMS

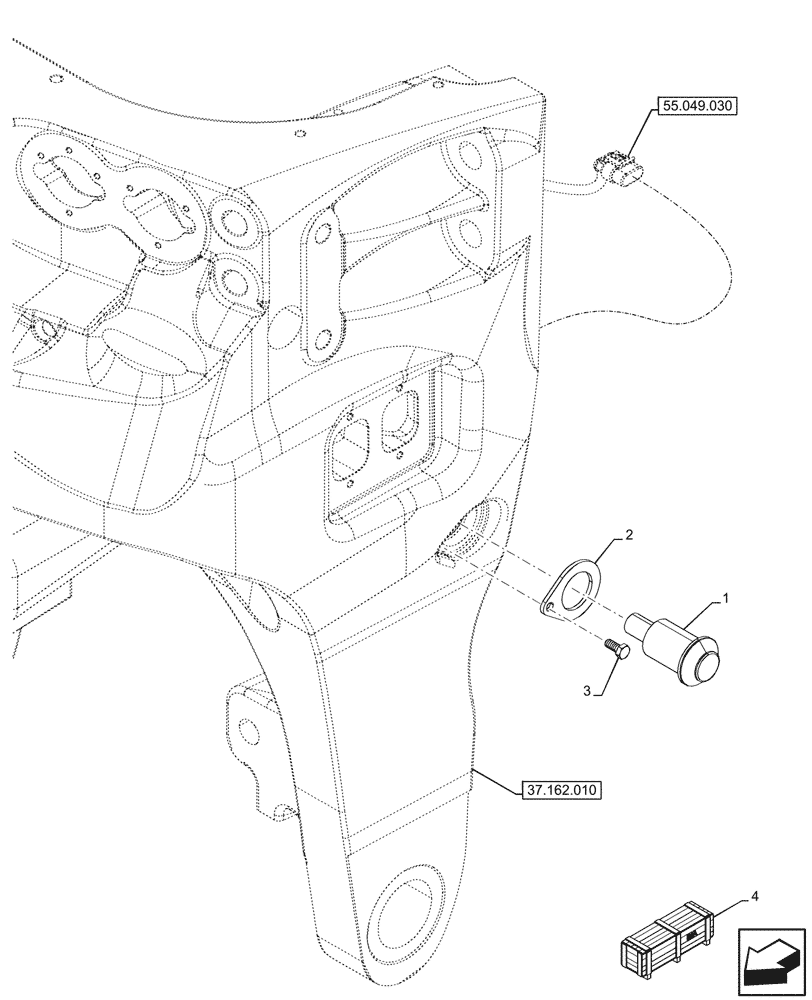

Схема запчастей Case IH OPTUM 270 CVT - (55.522.030) - VAR - 758770, 758771, 758772, 758773, 739305, 739306, 739307, 739308 - FRONT PTO SWITCH, EXTERNAL (55) - ELECTRICAL SYSTEMS
37.162.010
2
4
1
55.049.030
3

Артикул

Название

Примечание

Количество

1

82025543

PTO SWITCH

External

1шт.

2

47812639

PLATE

1шт.

3

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

4

731034014

DIA KIT, TRACTOR

Front PTO 2 Speed CW, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

4

731035014

DIA KIT, TRACTOR

Front PTO 2 Speed CCW, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
