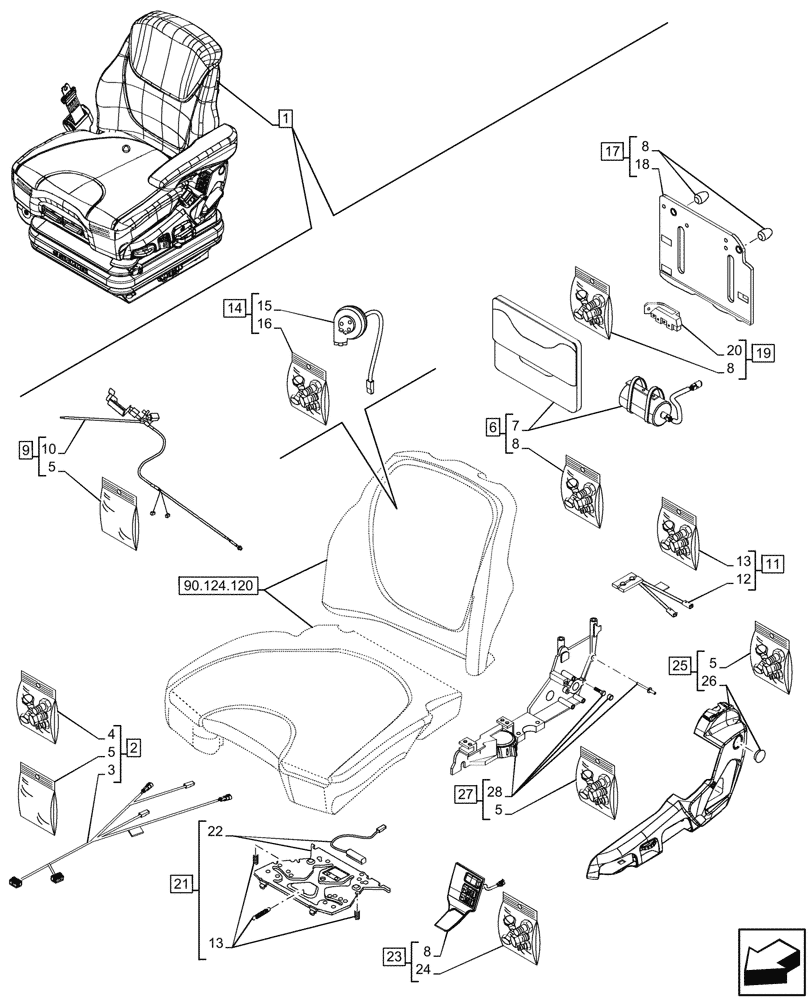

Запчасти Case IH OPTUM 270 CVT (55.512.290) - VAR - 758789 - SEAT, AIR SUSPENSION, COMFORT PACK 3, AIR COMPRESSOR, SENSOR, BLOWER, HARNESS (55) - ELECTRICAL SYSTEMS

1

47544026

DRIVER SEAT

ASSY, Pasubio Verona Scarlet, Comfort Pack 3, Incl 2 - 28

1шт.

See also Driver Seat Components in Figures 55.512.280, 90.124.120, 90.124.130, 90.124.140, 90.151.190

1шт.

2

47897057

WIRE HARNESS

ASSY, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Harness, Incl in 2

1шт.

4

47897033

SERVICE KIT

1шт.

5

47897073

SERVICE KIT

1шт.

6

47897068

SUPPORT

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Lumbar Support, Incl in 6

1шт.

8

47897070

SERVICE KIT

1шт.

9

47897066

WIRE HARNESS

ASSY, Incl 5, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Harness, Incl in 9

1шт.

11

47897067

SWITCH

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Switch, Incl in 11

1шт.

13

84191201

SET OF PARTS

1шт.

14

47897083

SERVICE KIT

ASSY, Incl 15, 16

1шт.

Part is Included in Cushion Assembly P/N 47897049

1шт.

15

NSS

NOT SOLD SEPARAT

Blower, Incl in 14

1шт.

16

47897078

SERVICE KIT

1шт.

17

390809A1

PACKAGE

ASSY, Incl 8, 18

1шт.

18

NSS

NOT SOLD SEPARAT

Plate, Incl in 17

1шт.

19

47897079

CONTROL VALVE

ASSY, Incl 8, 20

1шт.

20

NSS

NOT SOLD SEPARAT

Distributor, Incl in 19

1шт.

21

47897069

COMPENSATOR

ASSY, Incl 13, 22

1шт.

22

NSS

NOT SOLD SEPARAT

Plate, Incl in 21

1шт.

23

47897071

SERVICE KIT

ASSY, Incl 8, 24

1шт.

24

NSS

NOT SOLD SEPARAT

Trigger, Incl in 23

1шт.

25

47897081

COVER

ASSY, Incl 5, 26

1шт.

26

NSS

NOT SOLD SEPARAT

Cover, Incl in 25

1шт.

27

47897082

KIT

ASSY, Incl 5, 28

1шт.

28

NSS

NOT SOLD SEPARAT

Suppert, Incl in 27

1шт.
