Запчасти Case IH OPTUM 270 CVT (55.512.270) - VAR - 758788 - SEAT, AIR SUSPENSION, COMFORT PACK 2, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS

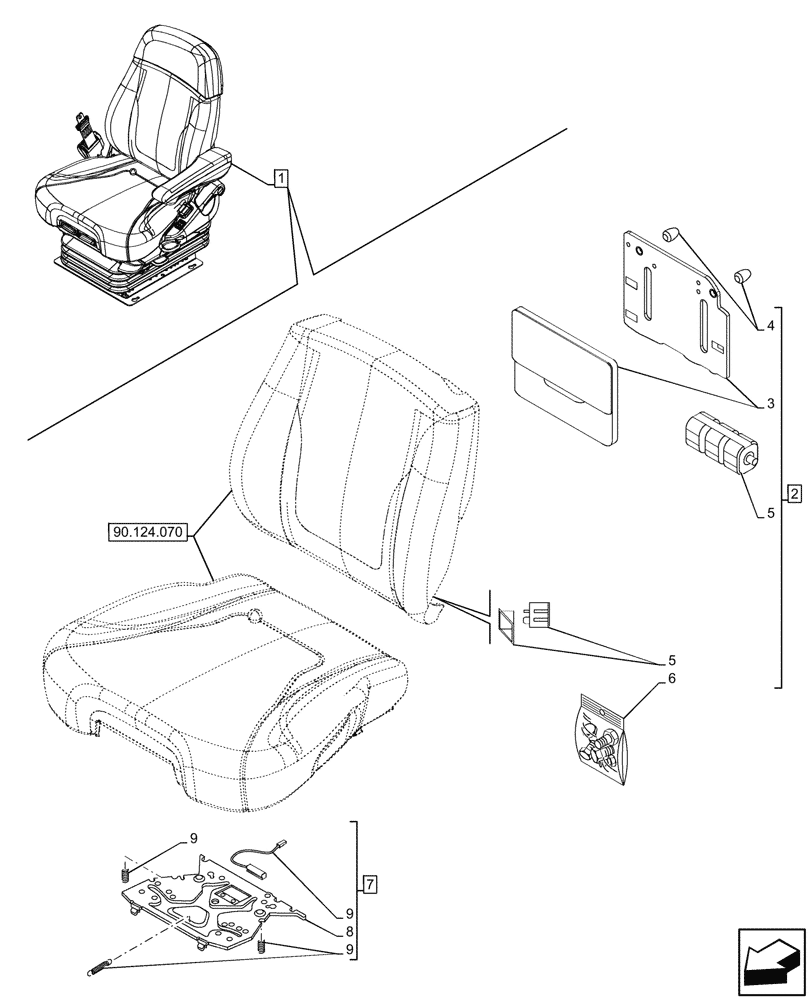

Схема запчастей Case IH OPTUM 270 CVT - (55.512.270) - VAR - 758788 - SEAT, AIR SUSPENSION, COMFORT PACK 2, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS
90.124.070
9
7
5
3
9
5
9
6
2
8
1
4

Артикул

Название

Примечание

Количество

1

47730140

DRIVER SEAT

ASSY, Fabric Paubio Verona Scarlet, Comfort Pack 2, Incl 2 - 9

1шт.

See also Driver Seat Components in Figures 55.512.260, 90.124.070, 90.124.080, 90.124.090, 90.124.100, 90.151.180

1шт.

2

47891539

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47918168

REPAIR KIT

1шт.

5

47918164

AIR COMPRESSOR

1шт.

6

47918167

SERVICE KIT

1шт.

7

47891523

SERVICE KIT

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 7

1шт.

9

84191201

SET OF PARTS

1шт.

Выбрано товаров: 10
