(55.512.260) - VAR - 758788 - SEAT, AIR SUSPENSION, COMFORT PACK 2, SWITCH, HARNESS, AIR COMPRESSOR

Запчасти Case IH OPTUM 270 CVT (55.512.260) - VAR - 758788 - SEAT, AIR SUSPENSION, COMFORT PACK 2, SWITCH, HARNESS, AIR COMPRESSOR (55) - ELECTRICAL SYSTEMS

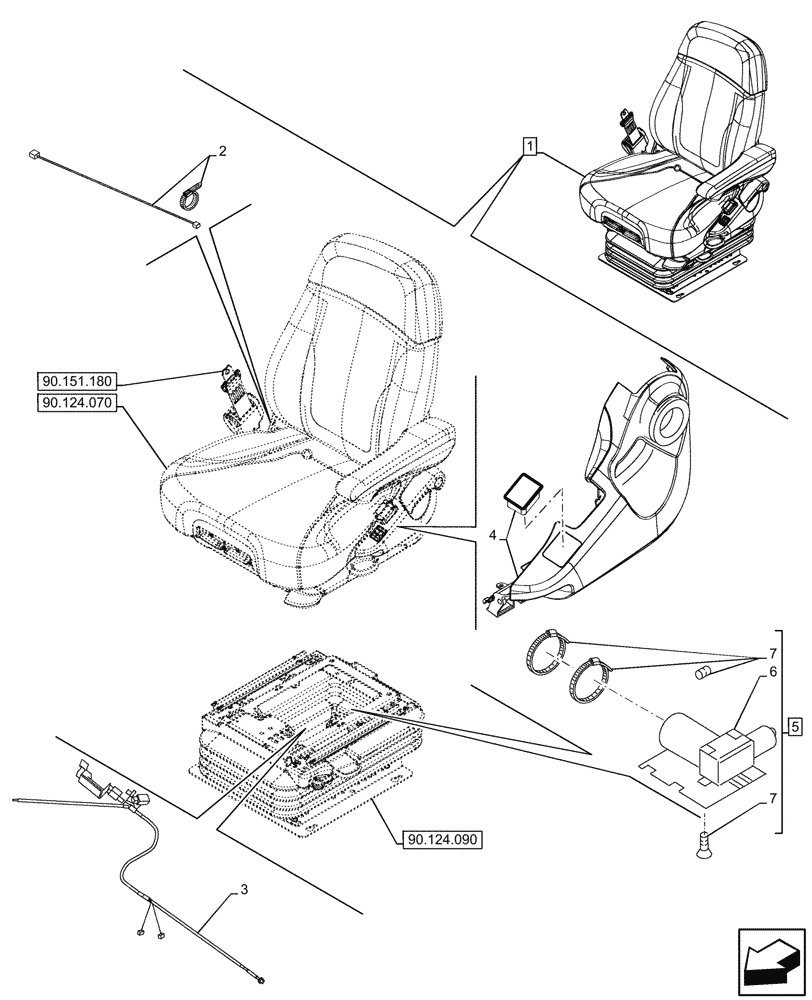

Схема запчастей Case IH OPTUM 270 CVT - (55.512.260) - VAR - 758788 - SEAT, AIR SUSPENSION, COMFORT PACK 2, SWITCH, HARNESS, AIR COMPRESSOR (55) - ELECTRICAL SYSTEMS
90.124.090
4
7
1
6
5
3
2
7
90.151.180
90.124.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47730140

DRIVER SEAT

ASSY, Fabric Paubio Verona Scarlet, Comfort Pack 2, Incl 2 - 7

1шт.

See also Driver Seat Components in Figures 55.512.270, 90.124.070, 90.124.080, 90.124.090, 90.124.100, 90.151.180

1шт.

2

47891438

WIRE HARNESS

1шт.

3

47891532

WIRE HARNESS

1шт.

4

47891411

COVER

1шт.

5

84190980

AIR COMPRESSOR

ASSY, Incl 6, 7

1шт.

6

NSS

NOT SOLD SEPARAT

Air Compressor, Incl in 5

1шт.

7

84191008

REPAIR KIT

1шт.
