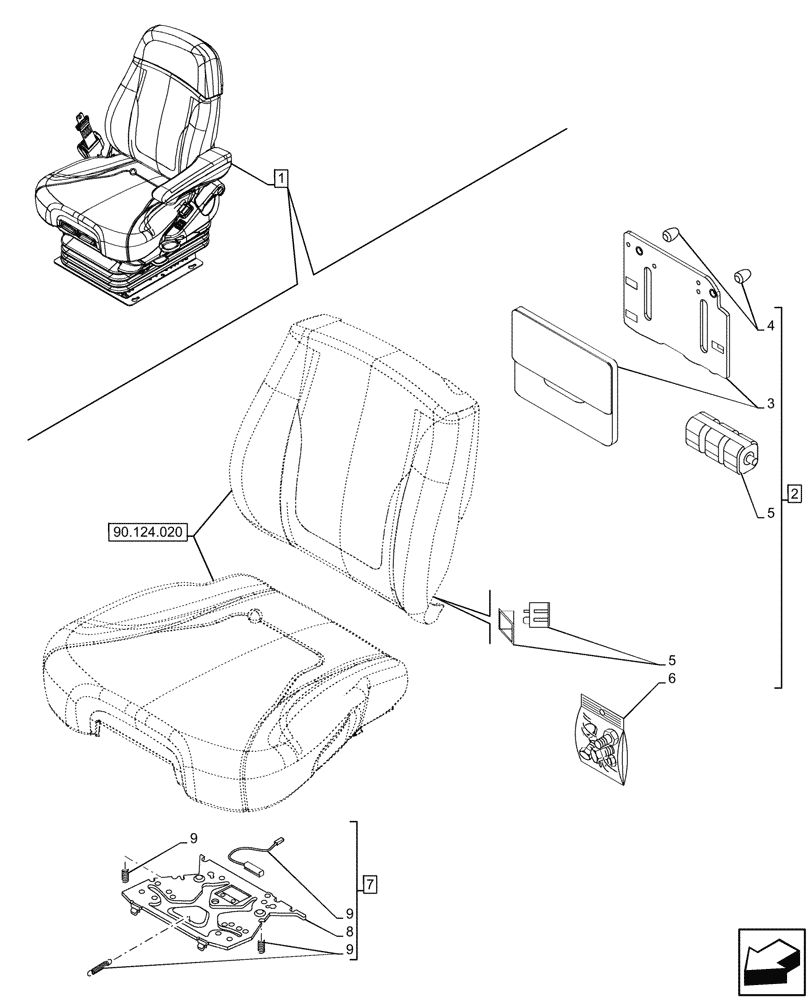

Запчасти Case IH OPTUM 270 CVT (55.512.250) - VAR - 758787 - SEAT, AIR SUSPENSION, COMFORT PACK 1, AIR COMPRESSOR, SENSOR (55) - ELECTRICAL SYSTEMS

1

47544015

DRIVER SEAT

ASSY, Fabric Verona Grey, Comfort Pack 1, Incl 2 - 9

1шт.

See also Driver Seat Components in Figure 55.512.240, 90.124.020, 90.124.030, 90.124.040, 90.124.050, 90.151.170

1шт.

2

47891539

SUPPORT

ASSY, Incl 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 2

1шт.

4

47918168

REPAIR KIT

1шт.

5

47918164

AIR COMPRESSOR

1шт.

6

47918167

SERVICE KIT

1шт.

7

47891523

SERVICE KIT

ASSY, Incl 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 7

1шт.

9

84191201

SET OF PARTS

1шт.
