Запчасти Case IH OPTUM 270 CVT (05.100.042) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

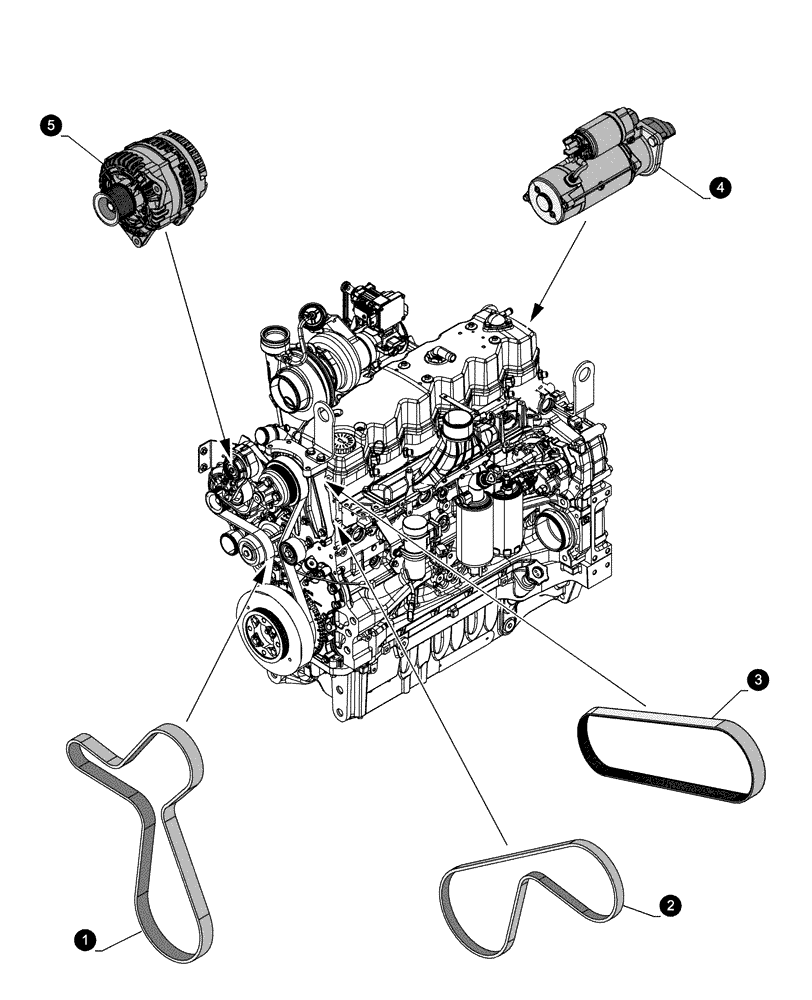

Схема запчастей Case IH OPTUM 270 CVT - (05.100.042) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
4
5
1
2
3

Артикул

Название

Примечание

Количество

1

47531260

BELT,35.5mm W x 1696mm L, 10 Ribs

Main Drive

1шт.

2

47560879

BELT,18mm W x 1270mm L, 5 Ribs

Air Brakes

1шт.

3

47513121

BELT,936.07mm L, 4 Ribs

A/C Compressor

1шт.

4

47605262

STARTER MOTOR,12V, 4.2KW

On Engine

1шт.

5

47580532

ALTERNATOR,200A, 14V

On Engine

1шт.

Выбрано товаров: 5
