Запчасти Case IH OPTUM 270 CVT (55.512.160) - ARMREST, ELECTRONIC, CONTROLS (55) - ELECTRICAL SYSTEMS

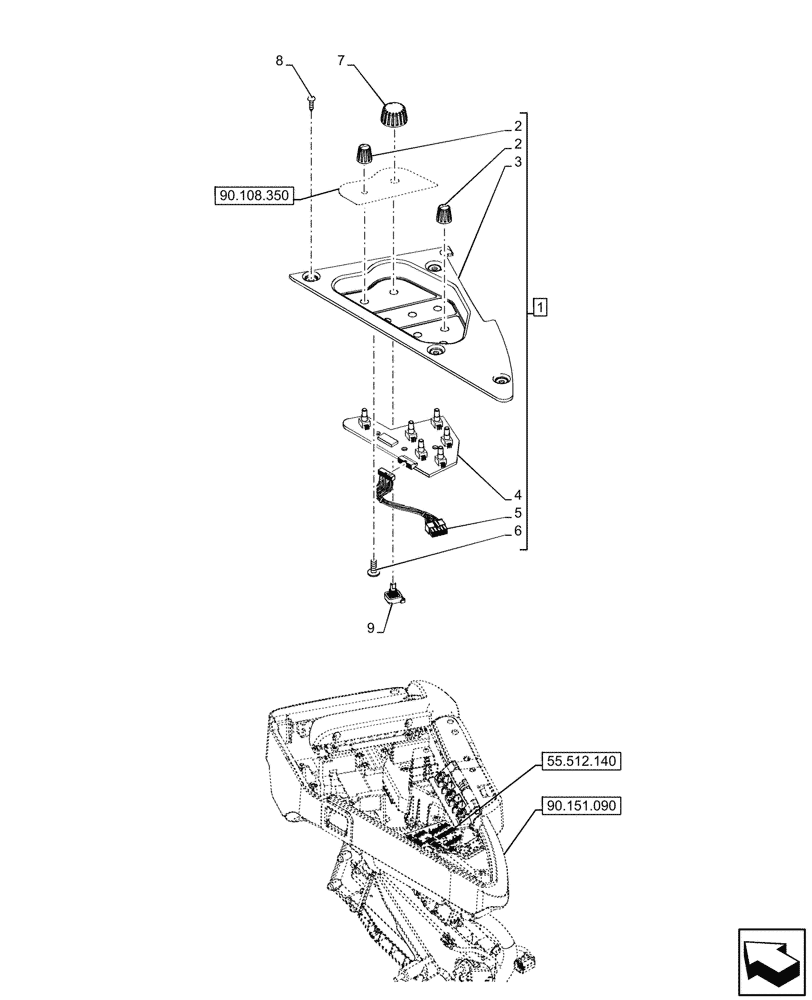

Схема запчастей Case IH OPTUM 270 CVT - (55.512.160) - ARMREST, ELECTRONIC, CONTROLS (55) - ELECTRICAL SYSTEMS
90.151.090
3
1
2
6
5
7
9
4
2
8
90.108.350
55.512.140

Артикул

Название

Примечание

Количество

1

84394113

ELECTRIC PANEL

ASSY, Incl 2 - 6

1шт.

See Also EDC Front In Figure 90.108.350

1шт.

2

87584684

KNOB

6шт.

3

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

4

84394129

PRINTED CIRCUIT BOAR

1шт.

5

84395364

WIRE HARNESS

PCB

1шт.

6

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

7

87454709

KNOB

1шт.

8

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

9

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.
