Запчасти Case IH OPTUM 270 CVT (55.512.150) - ARMREST, ELECTRONIC, CONTROLS (55) - ELECTRICAL SYSTEMS

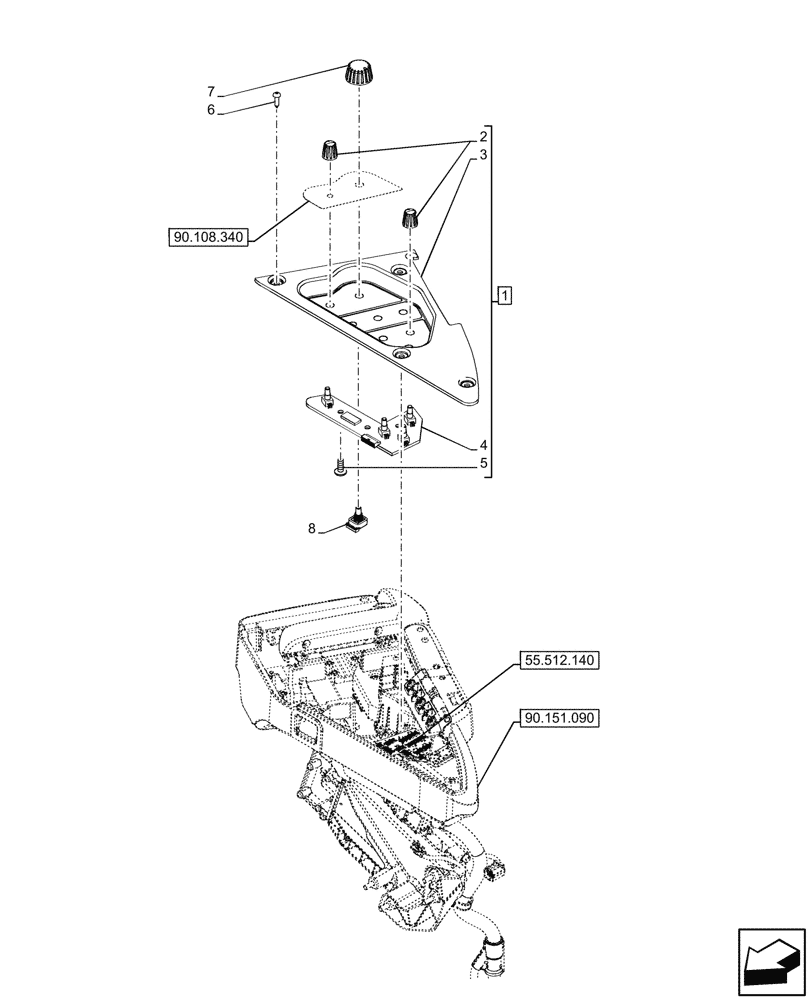

Схема запчастей Case IH OPTUM 270 CVT - (55.512.150) - ARMREST, ELECTRONIC, CONTROLS (55) - ELECTRICAL SYSTEMS
55.512.140
4
8
1
2
3
5
7
6
90.108.340
90.151.090

Артикул

Название

Примечание

Количество

1

84168654

ELECTRIC PANEL

ASSY, Incl 2 - 5

1шт.

See also Panel EDC Rear in Figure 90.108.340

1шт.

2

82012988

KNOB

4шт.

3

NSS

NOT SOLD SEPARAT

Panel, Incl in 1

1шт.

4

84175363

PRINTED CIRCUIT BOAR

1шт.

5

82018700

SCREW,Phillips Drive, Round HD, M2.5 x 10mm

3шт.

6

15903977

SELF-TAP SCREW,Pan Head, M4.8 x 1.6 x 19mm

4шт.

7

87454709

KNOB

1шт.

8

87755846

POTENTIOMETER,5V, 30mA, 150mW

1шт.

Выбрано товаров: 9
