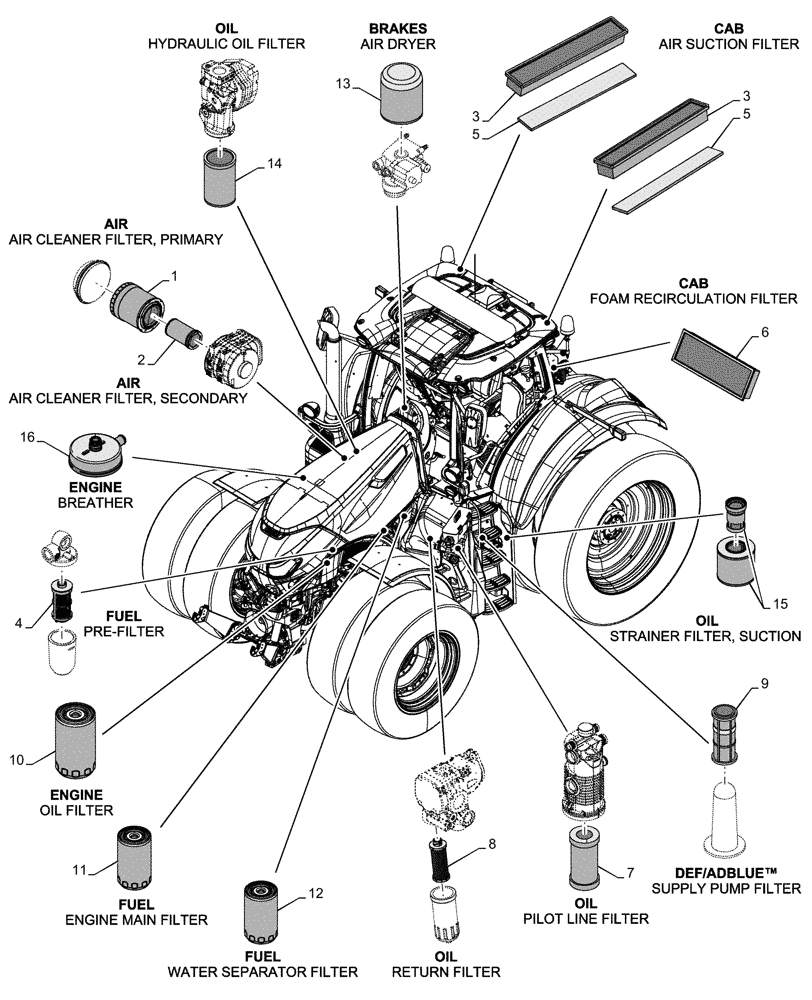

Запчасти Case IH OPTUM 270 CVT (05.100.041) - MAINTENANCE PARTS - FILTERS (05) - SERVICE & MAINTENANCE

1

87517154

AIR FILTER,281.6mm ID x 284.4mm OD x 319mm L

Primary Cartridge, Every 600 hours

1шт.

2

87517153

AIR FILTER,142.3mm ID x 150.9mm OD x 258mm L

Secondary Cartridge, Every 1200 hours or every 2 years

1шт.

3

87726675

CAB FILTER,Fresh Air, 550mm x 100mm x 64mm, Paper

Heating, Conditioning, w/High Profile Roof, Every 600 hours

2шт.

4

84328598

FUEL FILTER,40mm OD x 109mm L, M14 x 1.5, 350 Microns

Pre-Cleaner, Every 600 hours

1шт.

5

87726694

FOAM

Outer Cartridge, Foam, Every 1200 hours or annually

2шт.

6

87726699

CAB FILTER,Fresh Air, 380mm x 130mm x 49mm, Paper

Inner Thick Cartridge, Recirculation, Every 1200 hours or annually

1шт.

7

47715391

HYDRAULIC OIL FILTER,148mm OD x 268mm L

Transmission/Pump, Every 600 hours

1шт.

8

84417139

ELEMENT,267.5mm L, 11 Micron

Transmission/Pump, Every 600 hours

1шт.

9

47364243

FILTER

DeNOx2, Every 3600 hours or every 2 years

1шт.

10

84228488

ENGINE OIL FILTER,95mm OD x 171mm L, M27x2-6H

Engine Oil, Spin-On, Every 600 hours

1шт.

11

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Secondary, Every 600 hours

1шт.

12

47509565

FILTER

Primary, Every 600 hours

1шт.

13

87638772

CARTRIDGE,165mm L

on Pneumatic Trailer Brakes Air Dryer, Every 1200 hours or every 2 years

1шт.

Valid with Var. 758038, 758039, 758041, 758042, 758044

1шт.

13

47679253

CARTRIDGE

on Pneumatic Trailer Brakes Air Dryer, Every 1200 hours or every 2 years

1шт.

Valid with Var. 758035, 758036

1шт.

14

87588814

HYDRAULIC OIL FILTER,151mm L

Transmission/Pump, Every 600 hours

1шт.

15

47815457

HYDRAULIC OIL FILTER,127mm OD x 134mm L

Strainer Filter, Suction

1шт.

16

42568767

FILTER

Crankcase Breather, 5140

1шт.
