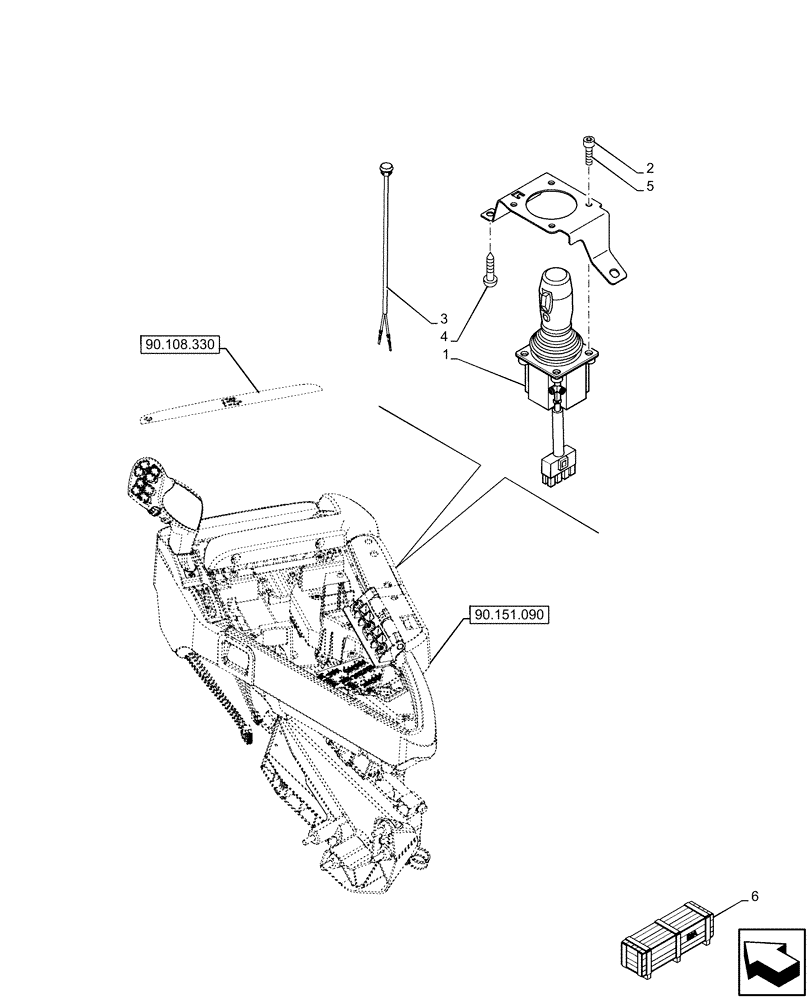

Запчасти Case IH OPTUM 270 CVT (55.512.110) - VAR - 758070 - JOYSTICK (55) - ELECTRICAL SYSTEMS

1

84208738

JOYSTICK

Configurable, 2 Slice + Proportional Rocker

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

Joystick, Float

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.

6

719300034

DIA KIT, TRACTOR

Electronic Joystick with Proportional Sim. Control of 3rd Function, Incl 1 - 5

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
