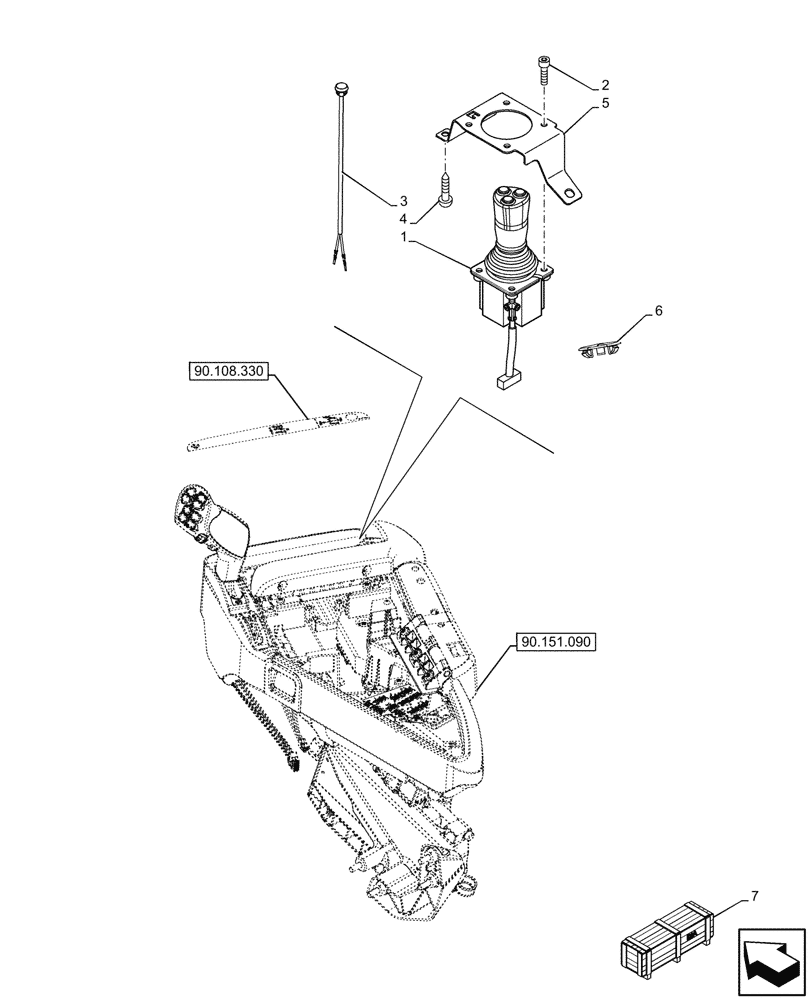

Запчасти Case IH OPTUM 270 CVT (55.512.100) - VAR - 758068 - JOYSTICK (55) - ELECTRICAL SYSTEMS

1

84208739

JOYSTICK

Configurable, 2 Slice + 3 Push Button

1шт.

2

86639293

HEX SOC SCREW,M4 x 12mm, Cl 8.8

4шт.

3

87485775

SWITCH ASSY

Joystick, Float

1шт.

4

15687901

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 9.50mm

2шт.

5

84202338

BRACKET

1шт.

6

87725444

BLANK-OFF PLUG,57.5mm OD, Black

1шт.

Less Joystick with EHR

1шт.

7

719301044

DIA KIT, TRACTOR

Joystick, W/ Div. Button and 2 Ancillary 12V Button, Incl 1 - 5

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

7

719301054

DIA KIT, TRACTOR

Joystick, W/ Div. Button and 2 Ancillary 12V Button, Incl 1 - 5

1шт.

Valid for 6270 CVT, 6300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
