Запчасти Case IH OPTUM 270 CVT (55.511.030) - VAR - 758998 - HEADLAMP, AUXILIARY, HARNESS (55) - ELECTRICAL SYSTEMS

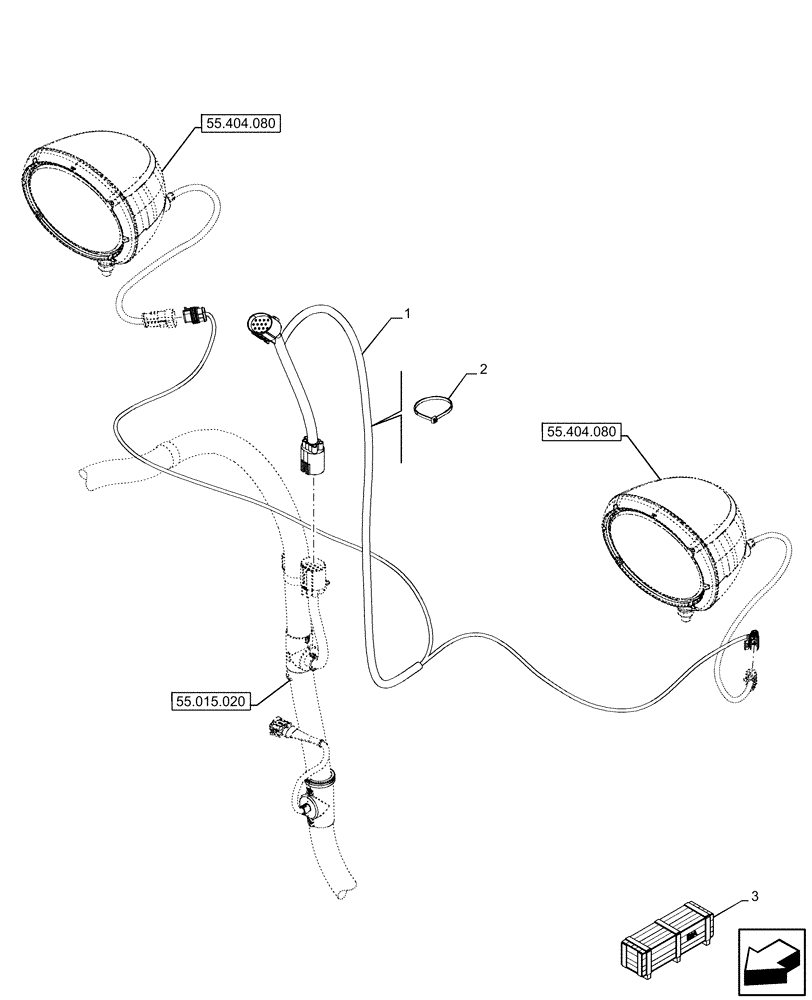

Схема запчастей Case IH OPTUM 270 CVT - (55.511.030) - VAR - 758998 - HEADLAMP, AUXILIARY, HARNESS (55) - ELECTRICAL SYSTEMS
55.404.080
3
2
1
55.015.020
55.404.080

Артикул

Название

Примечание

Количество

1

47874630

WIRE HARNESS

Auxiliary Headlamps Harness

1шт.

2

14560187

COLLAR,199mm L

3шт.

3

710177084

DIA KIT, TRACTOR

Front Headlights, F/ Top of Sidelights Left DIP, Incl 1, 2

1шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

710177094

DIA KIT, TRACTOR

Front Headlights, F/ Top of Sidelights Left DIP, Incl 1, 2

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

718177084

DIA KIT, TRACTOR

Front Headlights, F/ Top of Sidelights Left DIP, Incl 1, 2

1шт.

Valid for T7.290, T7.315 Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

718177094

DIA KIT, TRACTOR

Front Headlights, F/ Top of Sidelights Left DIP, Incl 1, 2

1шт.

Valid for OPTUM 270 CVX, OPTUM 300 CVX, OPTUM 270 CVT, OPTUM 300 CVT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
