Запчасти Case IH OPTUM 270 CVT (55.510.060) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS

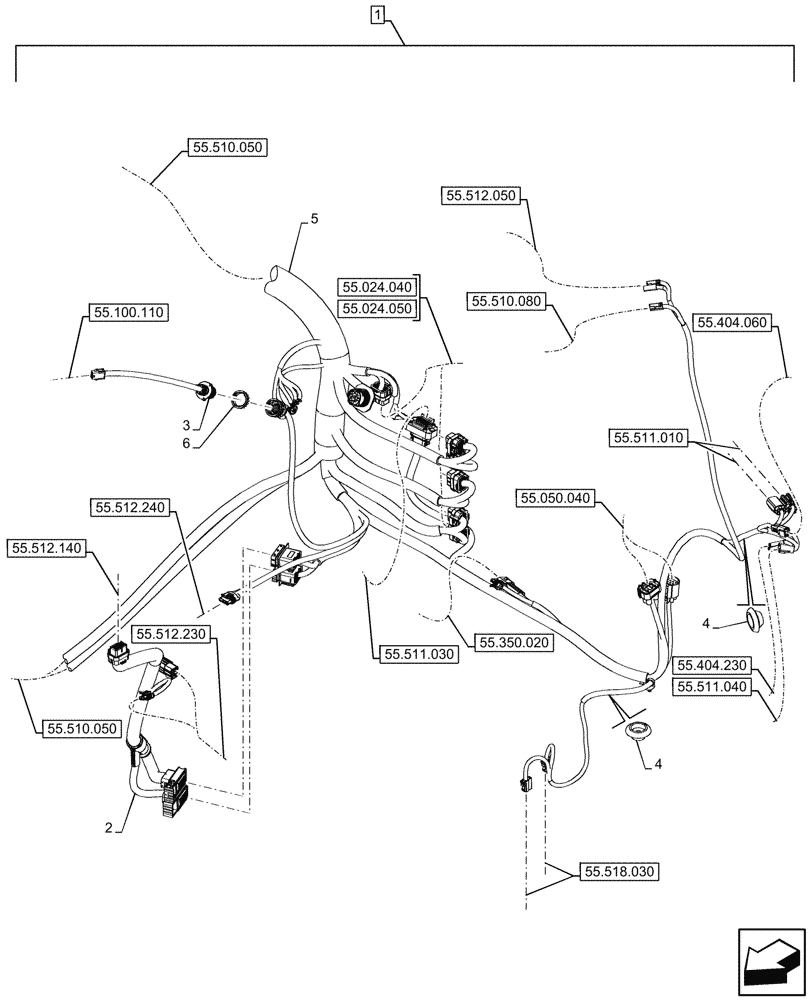

Схема запчастей Case IH OPTUM 270 CVT - (55.510.060) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.404.230
6
4
3
5
2
1
4
55.024.040
55.510.050
55.510.050
55.511.030
55.512.140
55.512.050
55.404.060
55.050.040
55.100.110
55.510.080
55.350.020
55.512.230
55.511.040
55.511.010
55.024.050
55.518.030
55.512.240

Артикул

Название

Примечание

Количество

1

47915460

WIRE HARNESS

ASSY, Incl 2 - 6

1шт.

2

84195894

WIRE HARNESS

Armrest

1шт.

3

47874628

WIRE HARNESS

Park Brake

1шт.

4

NSS

NOT SOLD SEPARAT

Grommet, Incl in 1

2шт.

5

NSS

NOT SOLD SEPARAT

Cab Main Harness, Incl in 1

1шт.

6

47884505

WIRE CONNECTOR,18 Cavities/Pins

1шт.

Выбрано товаров: 6
