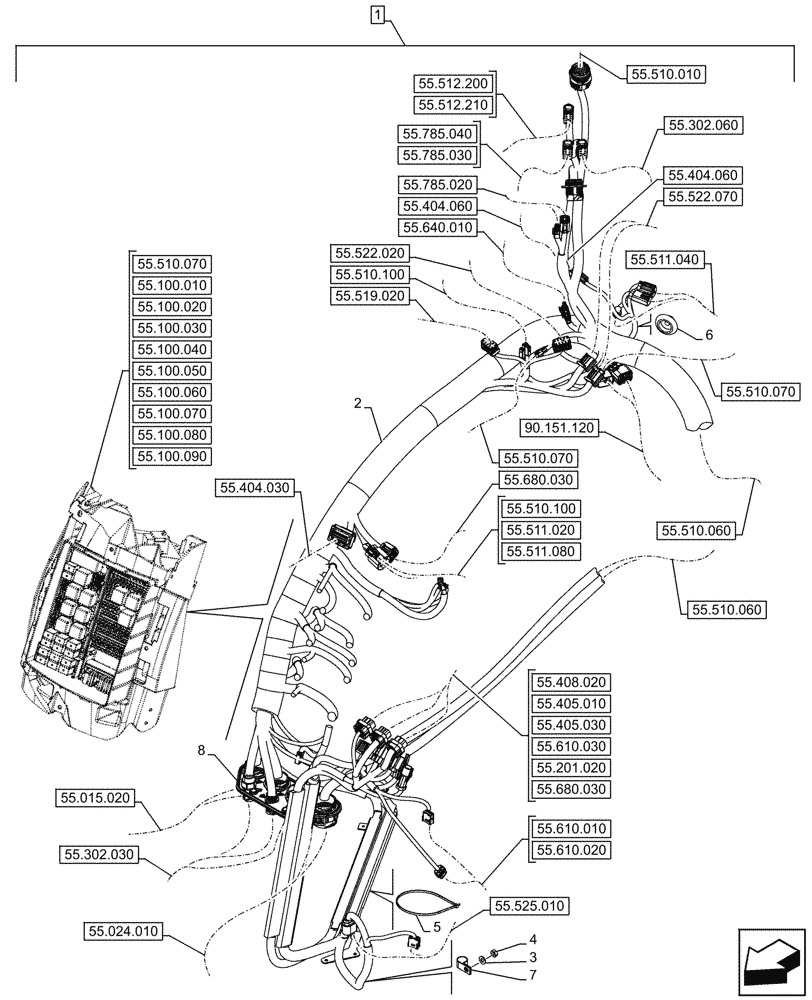

Запчасти Case IH OPTUM 270 CVT (55.510.050) - CAB MAIN WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.100.020
55.610.020
2
8
1
4
7
3
5
6
55.100.030
55.610.010
90.151.120
55.201.020
55.511.080
55.100.080
55.610.030
55.510.070
55.510.070
55.510.070
55.512.200
55.404.060
55.404.060
55.511.040
55.100.040
55.512.210
55.100.050
55.640.010
55.408.020
55.785.030
55.015.020
55.511.020
55.510.060
55.510.060
55.100.060
55.100.090
55.100.070
55.404.030
55.405.010
55.519.020
55.785.020
55.302.060
55.302.030
55.785.040
55.024.010
55.510.010
55.522.070
55.522.020
55.510.100
55.510.100
55.680.030
55.680.030
55.100.010
55.405.030
55.525.010
№
Артикул
Название
Примечание
Количество
1
47915460
WIRE HARNESS
ASSY, Incl 2 - 8
1шт.
2
NSS
NOT SOLD SEPARAT
Cab Main Harness, Incl in 1
1шт.
3
14496501
WASHER,8.4mm ID x 17mm OD x 1.6mm Thk
1шт.
4
16100811
NUT,Hex, M8, 6.80mm, Cl 8, ZND
1шт.
5
82001041
CABLE TIE,0.190" x 7.00" / 200 mm L
2шт.
6
84127839
GROMMET,45.47mm OD x 32mm ID x 19.05mm Thk
Grommet, Incl in 1
1шт.
7
9706748
CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type
1шт.
8
84157940
PLATE
1шт.
Выбрано товаров: 8
