Запчасти Case IH OPTUM 270 CVT (55.404.090) - VAR - 758998 - HEADLAMP, AUXILIARY (55) - ELECTRICAL SYSTEMS

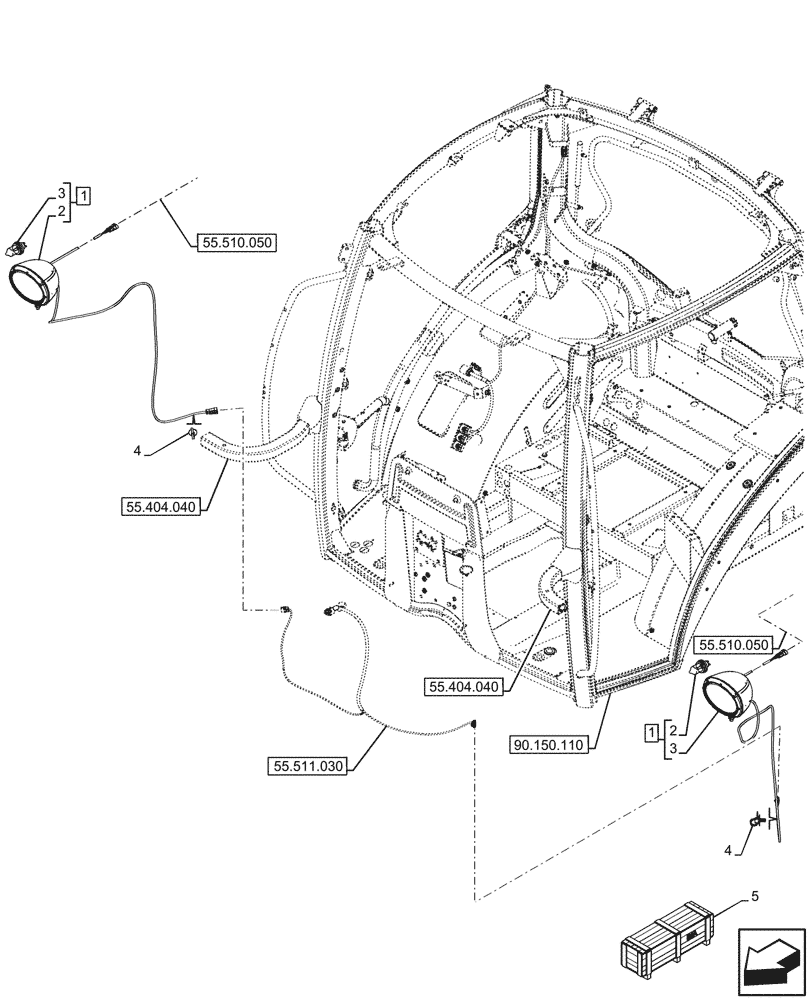

Схема запчастей Case IH OPTUM 270 CVT - (55.404.090) - VAR - 758998 - HEADLAMP, AUXILIARY (55) - ELECTRICAL SYSTEMS
55.511.030
3
4
4
5
3
1
2
2
1
55.404.040
55.404.040
90.150.110
55.510.050
55.510.050

Артикул

Название

Примечание

Количество

1

47677853

HEADLAMP,HB2, 12V

ASSY, Incl 2 (Qty 1), 3 (Qty 1)

2шт.

2

NSS

NOT SOLD SEPARAT

Lamp, Incl in 1

2шт.

3

87283179

BULB,H4, 12V, 60/55W

2шт.

4

82033028

CABLE TIE,170mm L

2шт.

5

718177094

DIA KIT, TRACTOR

Front Headlights, F/ Top of Sidelights Left DIP, Incl 1 - 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
