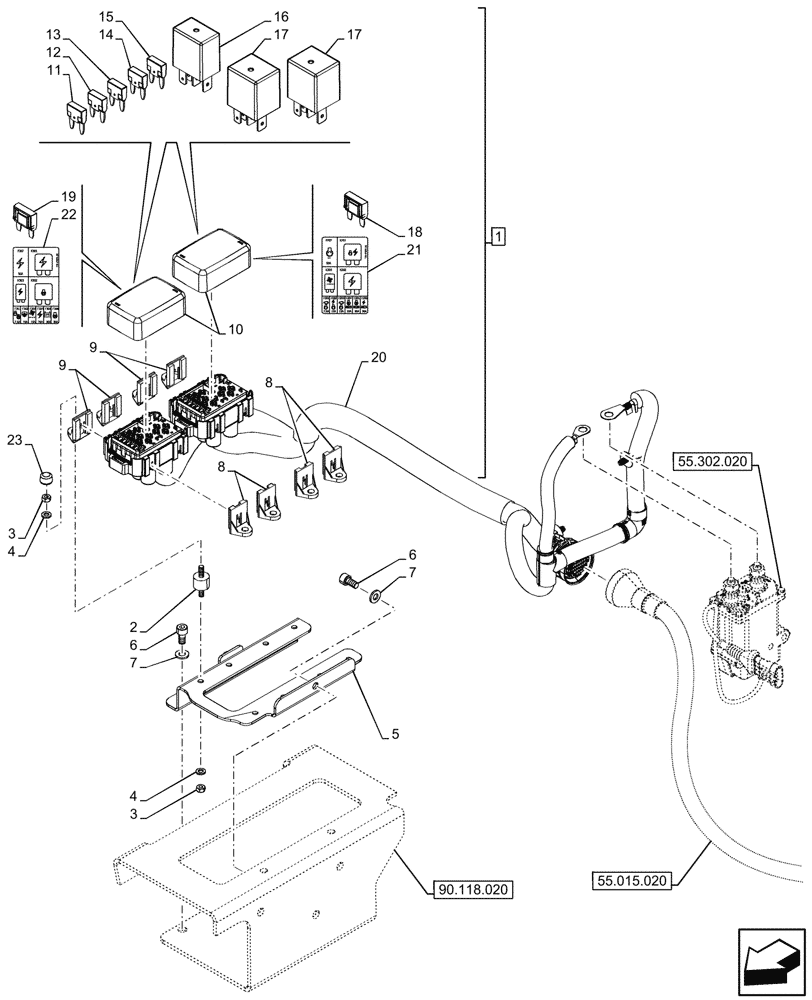

Запчасти Case IH OPTUM 270 CVT (55.302.050) - VAR - 391130, 758000, 759041 - POWER DISTRIBUTION UNIT (55) - ELECTRICAL SYSTEMS

1

47876211

WIRE HARNESS

ASSY, PDU Main Power Harness, 8 - 22

1шт.

2

47706963

DAMPER,2xM6, 20mm OD x 45mm L

8шт.

3

15896211

NUT,M6, Cl 8

16шт.

4

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

16шт.

5

47881430

BRACKET

1шт.

6

14306221

HEX SOC SCREW,M8 x 16mm, Cl 8.8, Full Thd

3шт.

7

83931520

WASHER,8.4mm ID x 17mm OD x 2mm Thk

3шт.

8

47495403

BRACKET

4шт.

9

47495407

BRACKET

4шт.

10

47495408

COVER

2шт.

11

84127702

FUSE,10A, Mini, Red

2шт.

12

84127703

FUSE,15A, Mini, Blue

2шт.

13

84127704

FUSE,20A, Mini, Yellow

3шт.

14

84127708

FUSE,30A, Mini, Green

3шт.

15

84152583

FUSE,7.5A, Mini, Brown

2шт.

16

84157157

RELAY,12V, 20A, Micro

2шт.

17

87341931

RELAY,Mini ISO, 12V, 70A

4шт.

18

82012388

FUSE,30A, Maxival, Green

1шт.

19

84279530

FUSE,50A, Maxival, Red

1шт.

20

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Label RH, Power Box, Incl in 1

1шт.

22

NSS

NOT SOLD SEPARAT

Label LH, Power Box, Incl in 1

1шт.

23

87522425

DECAL

2шт.
