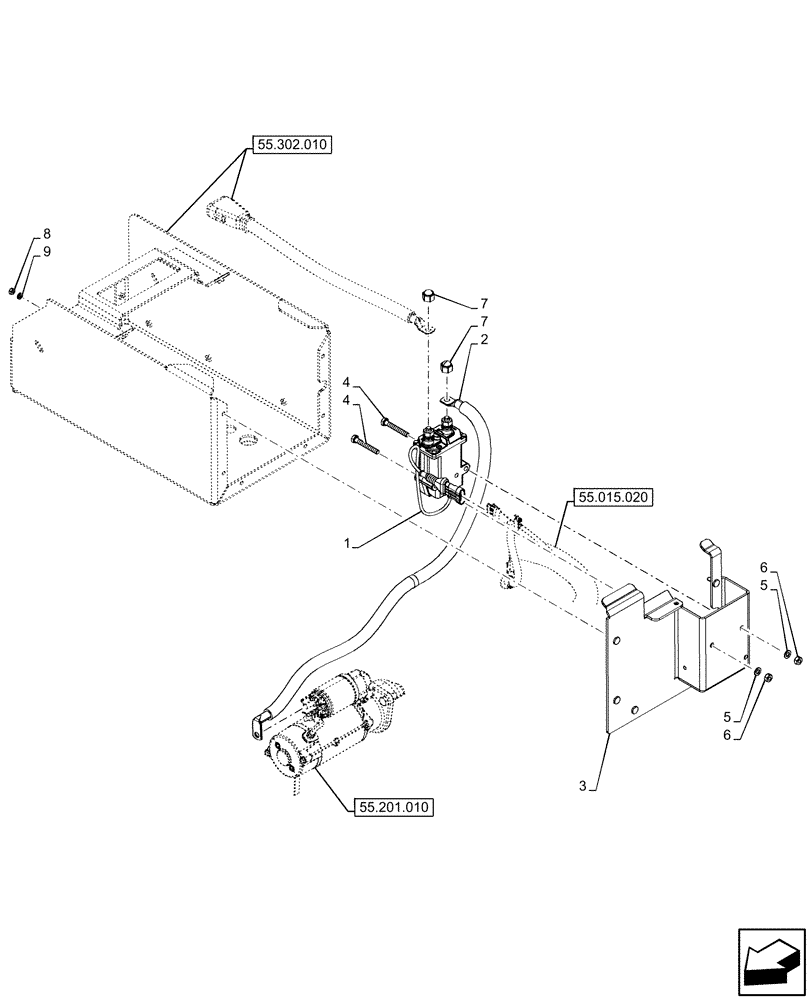

Запчасти Case IH OPTUM 270 CVT (55.302.020) - VAR - 391130, 758000, 759041 - BATTERY ISOLATOR (55) - ELECTRICAL SYSTEMS

1

84576869

RELAY,12V, 250A

Battery Disconnect, 12V 250A

1шт.

2

47586720

ELECTRIC CABLE

BDS to Starter Motor

1шт.

3

47881026

BATTERY BOX

Battery Disconnect

1шт.

4

16044324

SCREW,Hex, M8 x 1.25 x 55mm, Cl 8.8

2шт.

5

12638504

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

2шт.

6

16100814

NUT,M8, Cl 8, DAC

2шт.

7

82012814

CAP,M10

2шт.

8

15896211

NUT,M6, Cl 8

6шт.

9

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

6шт.
