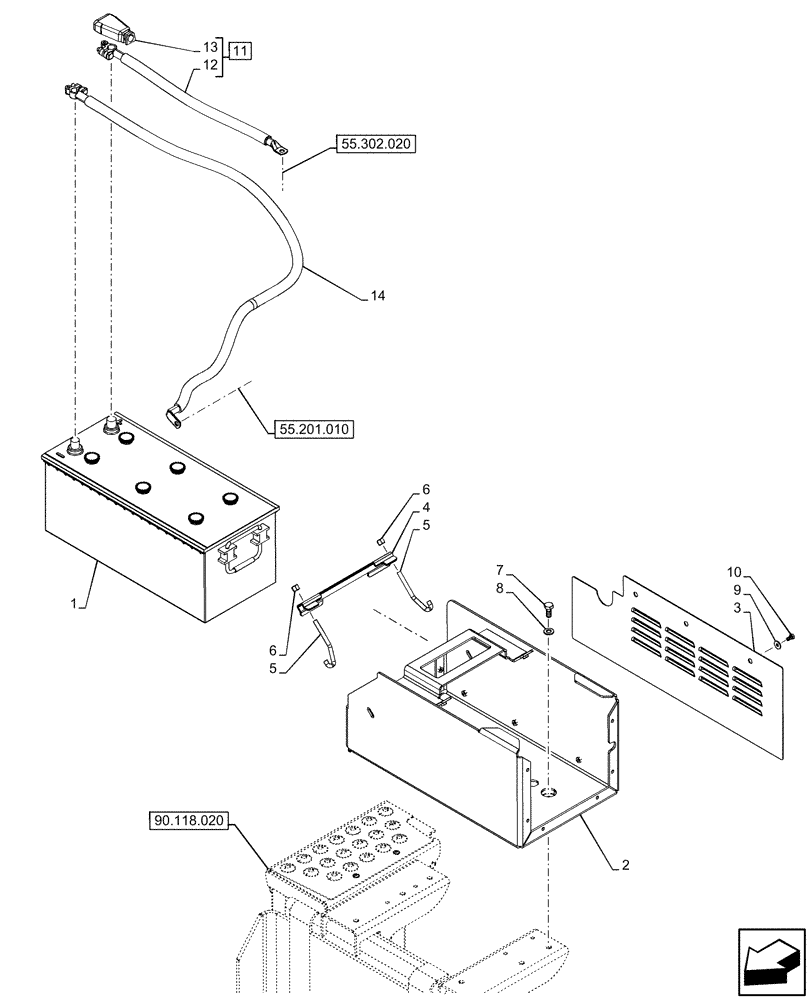

Запчасти Case IH OPTUM 270 CVT (55.302.010) - VAR - 391130, 758000, 759041 - BATTERY, SUPPORT, CABLE (55) - ELECTRICAL SYSTEMS

1

82027430

WET BATTERY,EN 50342-4 D5, 12V, 1300CCA

ISO

1шт.

1

BNHD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

New Holland, US only

1шт.

1

CBNHD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

New Holland, Canada only

1шт.

1

BCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

Case IH, US only

1шт.

1

CBCMD5W

WET BATTERY,Group D5, 1400 CCA, 380 RC

Case IH, Canada only

1шт.

2

47847241

BATTERY BOX

1шт.

3

47764374

SHIELD

1шт.

4

84544629

BRACKET

Battery Old Down

1шт.

5

84323271

HOOK

2шт.

6

87597953

NUT,M8, 1.25 Pitch, 10.6mm High, Cl 8, ZND

2шт.

7

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

8

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

9

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

3шт.

10

12643701

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

3шт.

11

47586724

ELECTRIC CABLE

ASSY, Positive Battery, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Harness, Incl in 11

1шт.

13

87349624

DUST CAP,15.5mm OD, 46.5mm W x 23mm Thk x 94mm L

1шт.

14

47586725

ELECTRIC CABLE

Negative Battery Earth

1шт.
