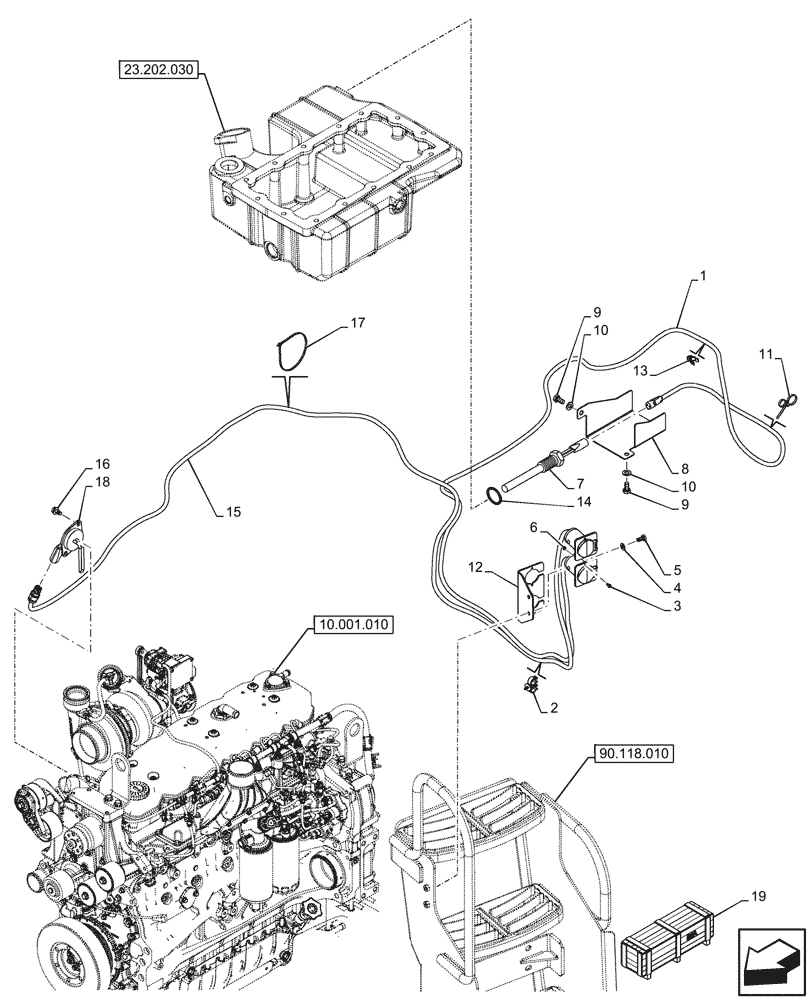

Запчасти Case IH OPTUM 270 CVT (55.202.020) - VAR - 758008 - TRANSMISSION OIL, BLOCK HEATER (240V) (55) - ELECTRICAL SYSTEMS

1

47799929

ELECTRIC CABLE

3000mm 240V, Trans Oil Heater

1шт.

2

47618287

CLIP,16/17mm ID

Swivel Double D.16-17

6шт.

3

13271914

SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd

4шт.

4

14496521

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

6

10794011

NUT,M4, Cl 8

4шт.

7

82030789

HEATER,240V

240V, Hydraulic Oil

1шт.

8

47705603

GUARD

Trans Oil Heater

1шт.

9

86637962

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

10

86505918

WASHER,M10 x 21.5 x 2.5, HT

2шт.

11

82013031

CABLE TIE,193mm L

2шт.

12

47651368

BRACKET

Heater Socket

1шт.

13

47556032

CLAMP,Top Entry, 12mm ID

Top Fir Tree Clip 1.6 - 5.5 Thk

1шт.

14

81903721

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

47799928

ELECTRIC CABLE

3000mm 240V, Engine Block Heater

1шт.

16

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

2шт.

17

82001041

CABLE TIE,0.190" x 7.00" / 200 mm L

4шт.

18

87756078

HEATER,240V

240V, Engine Block

1шт.

19

718188014

DIA KIT, TRACTOR

Engine Block and Transmission Heather, 240V, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
