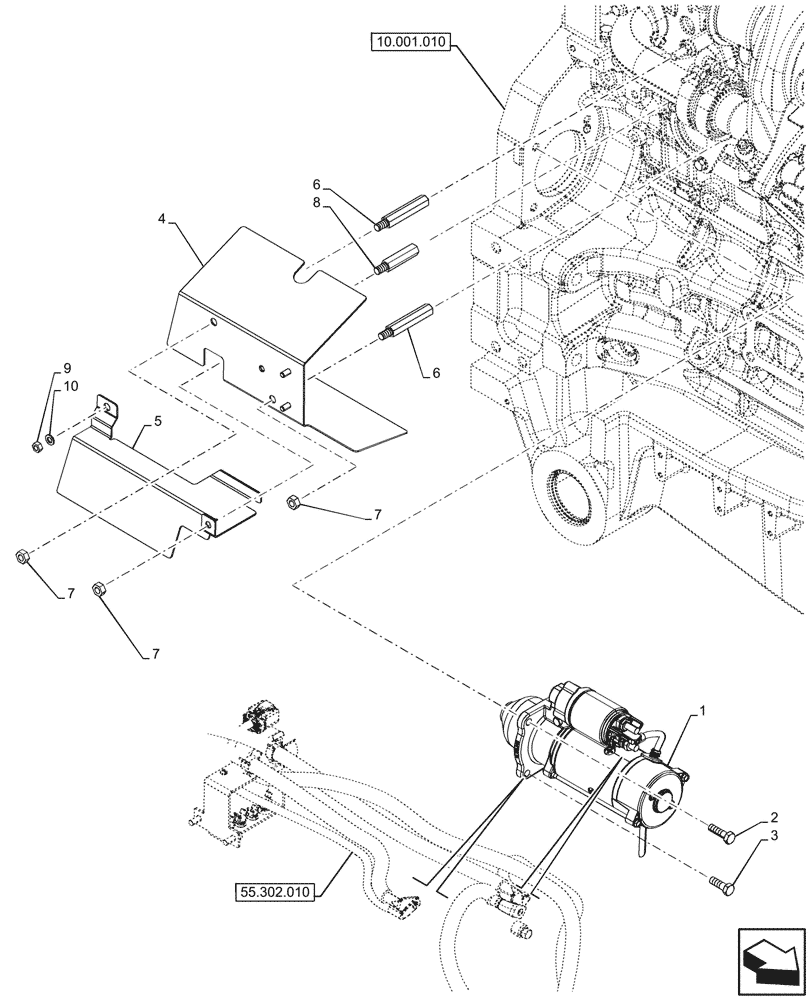

Запчасти Case IH OPTUM 270 CVT (55.201.010) - VAR - 391130, 758000, 759041 - STARTER MOTOR, HEAT SHIELD (55) - ELECTRICAL SYSTEMS

1

47605262

STARTER MOTOR,12V, 4.2KW

1шт.

2

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

3

11106421

SCREW,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

47762099

HEAT SHIELD

Discharge Protection

1шт.

5

47783292

SHIELD

Starter Motor

1шт.

6

47613449

STUD,M10

2шт.

7

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

8

47934303

STUD,M10 x 1.5 x 95.05mm L

1шт.

9

9706690

NUT,M8 x 1.25, Cl 8

1шт.

10

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.
