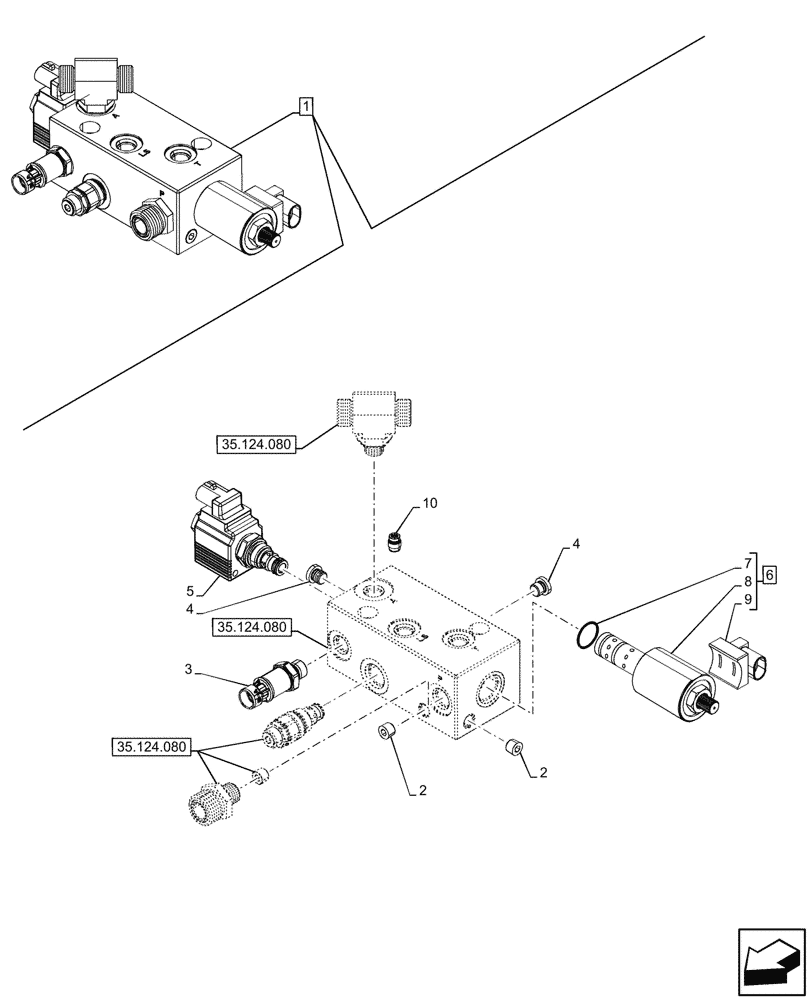

Запчасти Case IH OPTUM 270 CVT (55.130.020) - VAR - 759042 - ATTACHMENT, CONTROL DEVICE, W/ HYDRAULIC STABILIZERS, VALVE, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

47843660

HYDRAULIC VALVE

ASSY, Stabilizer, Incl 2 - 10

1шт.

See also Solenoid Valve Components in Figure 35.124.080

1шт.

2

47741913

HEX PLUG,M10 x 1

2шт.

3

84409605

SENSOR

1шт.

4

10118511

PLUG,M10 x 1

2шт.

5

47513122

SOLENOID,12 VDC, 21W, 6.85 Ohm

2W/2P

1шт.

6

84486704

SOLENOID,12 VDC, 23W, 5.9 Ohm, 210 bar

ASSY, 3W/2P, Incl 7 - 9

1шт.

7

86637738

O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro

1шт.

8

84484327

CARTRIDGE

1шт.

9

87758490

COIL

1шт.

10

47873859

CHECK VALVE

1шт.
