Запчасти Case IH OPTUM 270 CVT (55.049.020) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO, ELECTRONIC CONTROLS, COMPONENTS (55) - ELECTRICAL SYSTEMS

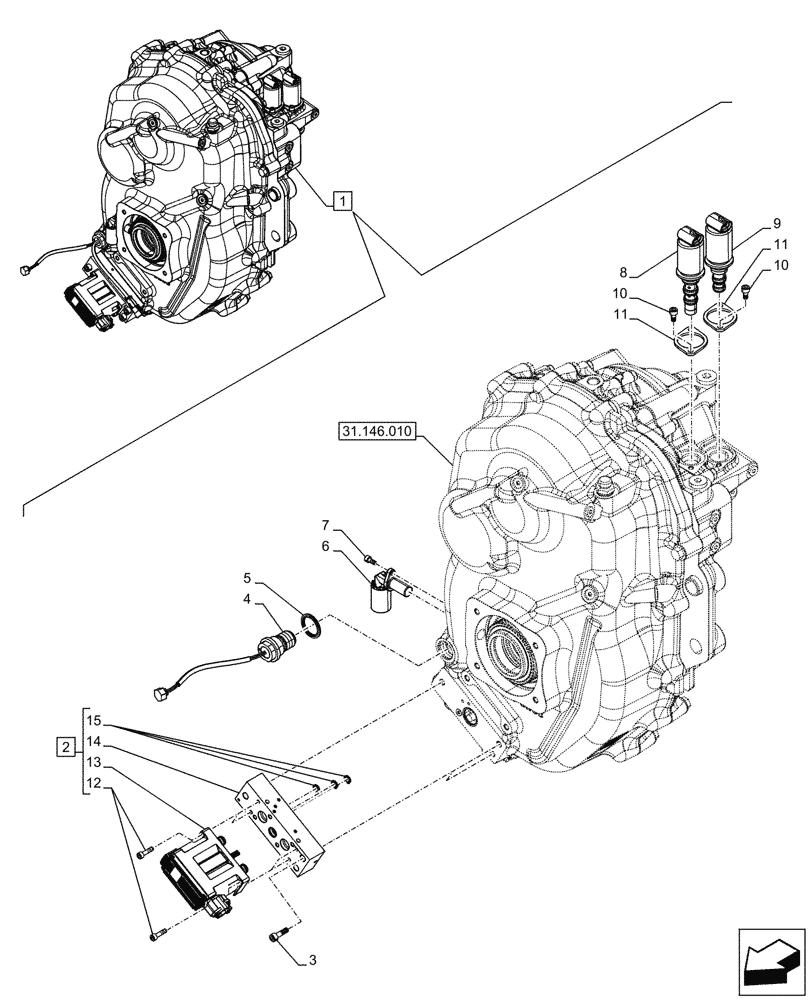

Схема запчастей Case IH OPTUM 270 CVT - (55.049.020) - VAR - 758770, 758771, 759305, 759306 - FRONT PTO, ELECTRONIC CONTROLS, COMPONENTS (55) - ELECTRICAL SYSTEMS
31.146.010
2
6
12
11
4
1
13
10
7
14
5
10
15
8
3
9
11

Артикул

Название

Примечание

Количество

1

47894653

FRONT PTO ASSY

CCW, Incl 2 - 15

1шт.

See Front PTO Components also in Figure 31.146.080, 31.146.090, 31.146.100, 31.146.110, 31.146.120

1шт.

2

47896831

PILOT VALVE

ASSY, Incl 12 - 15

1шт.

3

14306724

HEX SOC SCREW,M8 x 1.25 x 40mm, Cl 8.8, Full Thd

3шт.

4

84469231

SWITCH

1шт.

5

84547261

WASHER,26.75mm ID x 35mm OD x 1.6mm Thk

1шт.

6

47557243

SENSOR

Speed Sensor

1шт.

7

14304121

HEX SOC SCREW,M5 x 12mm, Cl 8.8

1шт.

8

87739558

SOLENOID VALVE,14W

1шт.

9

84537085

SOLENOID VALVE,12V DC, 7.3Ohm

1шт.

10

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

4шт.

11

5194826

BRACKET

2шт.

12

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

13

47749063

PILOT VALVE

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 2

1шт.

15

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

Выбрано товаров: 16
