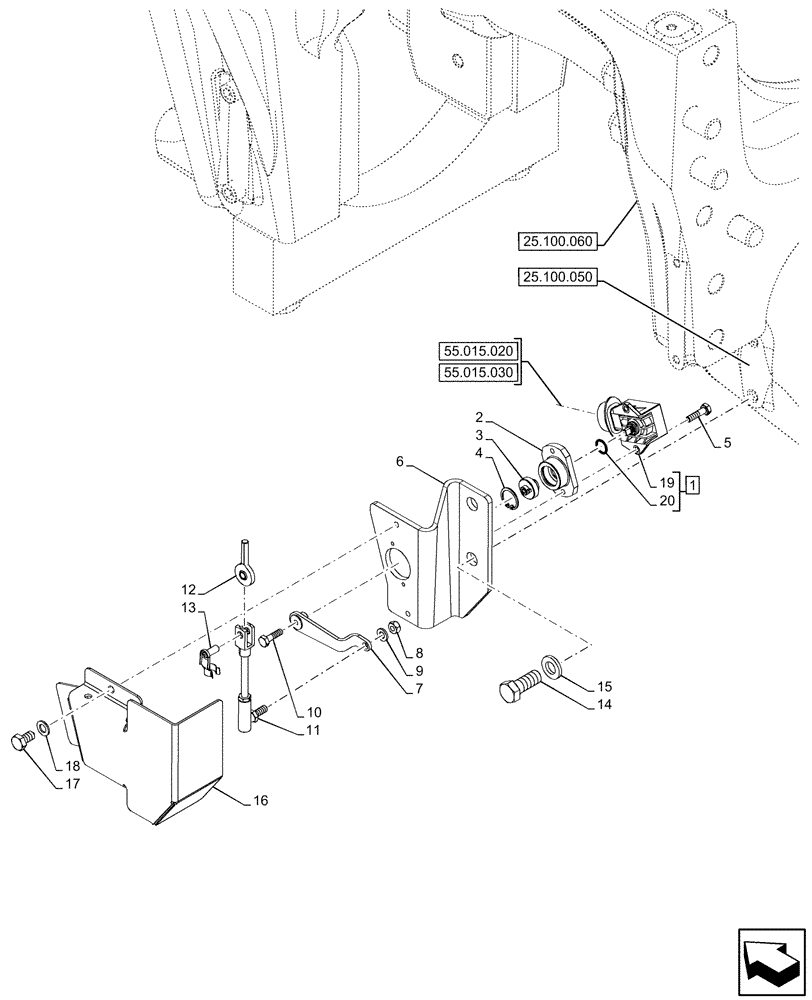

Запчасти Case IH OPTUM 270 CVT (55.045.020) - VAR - 758795, 758796 - FRONT AXLE, POTENTIOMETER (55) - ELECTRICAL SYSTEMS

1

84340074

SENSOR

ASSY, Angle Position, Incl 19, 20

1шт.

2

47638066

FLANGE

1шт.

3

47638069

CONTROL LEVER

1шт.

4

11057876

SNAP RING,M20, Int

1шт.

5

412064

BOLT,Hex, M4 x 16mm, Cl 8.8, Full Thd

2шт.

6

47803979

BRACKET

Black

1шт.

7

47801578

LEVER

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

14499301

WASHER,M6 x 12.00mm OD x 1.60mm Overwrite

1шт.

10

10444821

SCREW,Hex, M4 x 16mm, Cl 8.8, Full Thd

1шт.

11

82016945

LINK

1шт.

12

82016943

EYE,M6 x 1

1шт.

13

82016944

PIN,6mm OD x 14mm L

1шт.

14

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

15

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

16

47802768

COVER

Black

1шт.

17

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

2шт.

18

12639701

WASHER,6.15mm ID x 11mm OD x 1mm Thk

2шт.

19

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

20

84126835

O-RING,1.3mm Thk x 9.5mm ID, 70 Duro

1шт.
