Запчасти Case IH OPTUM 270 CVT (55.036.010) - VAR - 391138, 758022, 758870, 759053 - HYDRAULIC SYSTEM, VACUUM GAUGE, OIL PRESSURE GAUGE (55) - ELECTRICAL SYSTEMS

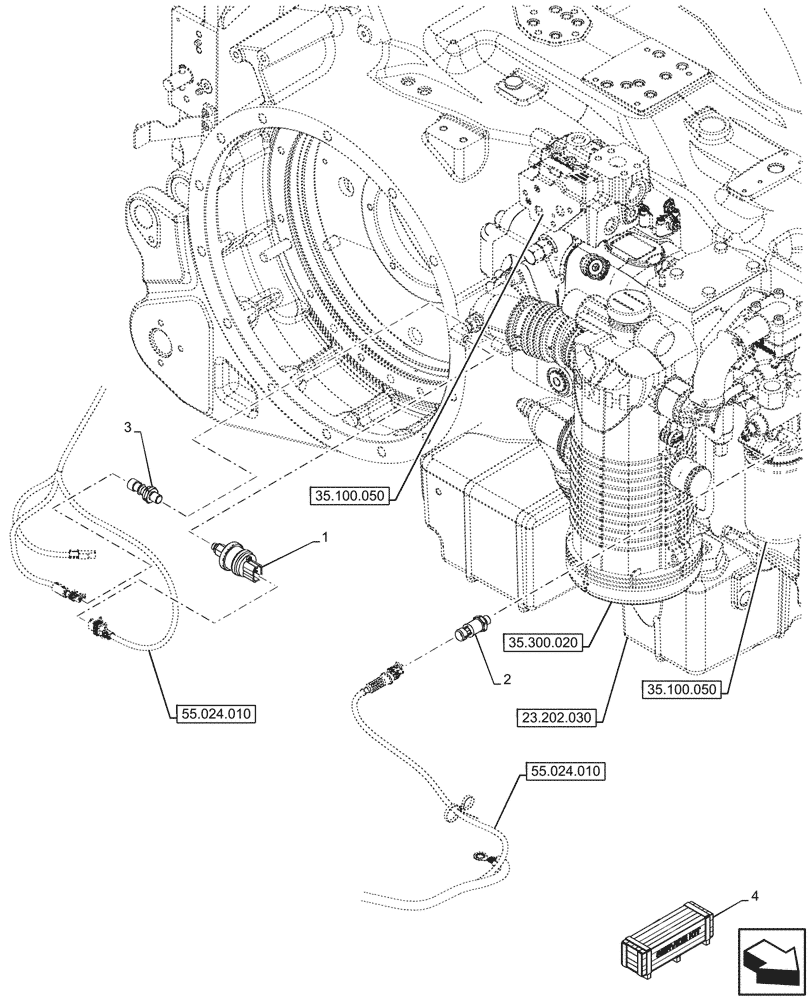

Схема запчастей Case IH OPTUM 270 CVT - (55.036.010) - VAR - 391138, 758022, 758870, 759053 - HYDRAULIC SYSTEM, VACUUM GAUGE, OIL PRESSURE GAUGE (55) - ELECTRICAL SYSTEMS
35.300.020
2
1
4
3
23.202.030
35.100.050
35.100.050
55.024.010
55.024.010

Артикул

Название

Примечание

Количество

1

82025340

RESTRICTION SWITCH

Vacuum

1шт.

2

84407733

PRESSURE SWITCH

1шт.

3

87564684

SWITCH ASSY

Pressure

1шт.

4

47912889

GEARBOX

Transmission ASSY, Incl 1 - 3

1шт.

See all the Included Components by searching for the PN 47912889

1шт.
