Запчасти Case IH OPTUM 270 CVT (55.035.040) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS

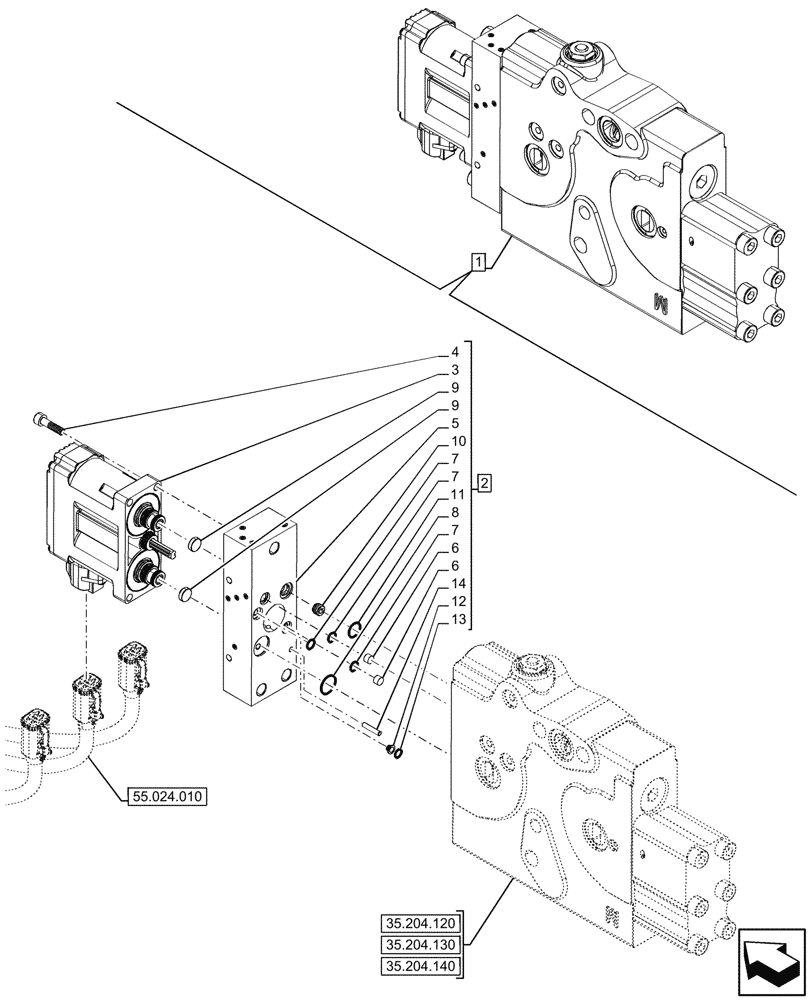

Схема запчастей Case IH OPTUM 270 CVT - (55.035.040) - VAR - 758060, 758061 - REMOTE CONTROL VALVE, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS
35.204.140
11
9
14
5
8
1
13
7
10
6
7
9
4
12
3
2
7
6
35.204.120
55.024.010
35.204.130

Артикул

Название

Примечание

Количество

1

47723760

HYDRAULIC VALVE

ASSY, Main Low Leak, Incl 2 - 14

1шт.

See also Components in Figure 35.204.120

1шт.

1

47723762

HYDRAULIC VALVE

ASSY, RH Low Leak, Incl 2 - 14

1шт.

See also Components in Figure 35.204.130

1шт.

1

47723762R

REMAN-HYD VALVE

ASSY, RH Low Leak, Incl 2 - 14

1шт.

1

47723762C

CORE-VALVE HYD

Return Number

1шт.

1

47723761

HYDRAULIC VALVE

ASSY, LH Low Leak, Incl 2 - 14

1шт.

See also Components in Figure 35.204.140

1шт.

1

47723761R

REMAN-HYD VALVE

Reman Assy, LH Low Leak, Incl 2 - 14

1шт.

1

47723761C

CORE-VALVE HYD

Return Number

1шт.

2

47735858

PILOT VALVE

ASSY, Incl 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

Pilot Head Valve, Incl in 2

1шт.

4

14304324

HEX SOC SCREW,M5 x 20mm, Cl 8.8, Full Thd

4шт.

5

NSS

NOT SOLD SEPARAT

Adapter Plate, Incl in 1

1шт.

6

87714123

FILTER

2шт.

7

87722012

O-RING,2.62mm Thk x 4.42mm ID, -106, 80 Duro

3шт.

8

84313724

O-RING,12.42mm ID x 1.78mm Thk

1шт.

9

47592733

FILTER STRAINER

2шт.

10

NSS

NOT SOLD SEPARAT

Filter, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Filter, Incl in 2

1шт.

13

47711752

O-RING,1.78mm Thk x 9.25mm ID, -012, 80 Duro

1шт.

14

13902270

ROLL PIN,M3.5 x 20, Coiled

1шт.

Выбрано товаров: 23
