Запчасти Case IH OPTUM 270 CVT (55.032.070) - VAR - 758042, 758044 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, HARNESS (55) - ELECTRICAL SYSTEMS

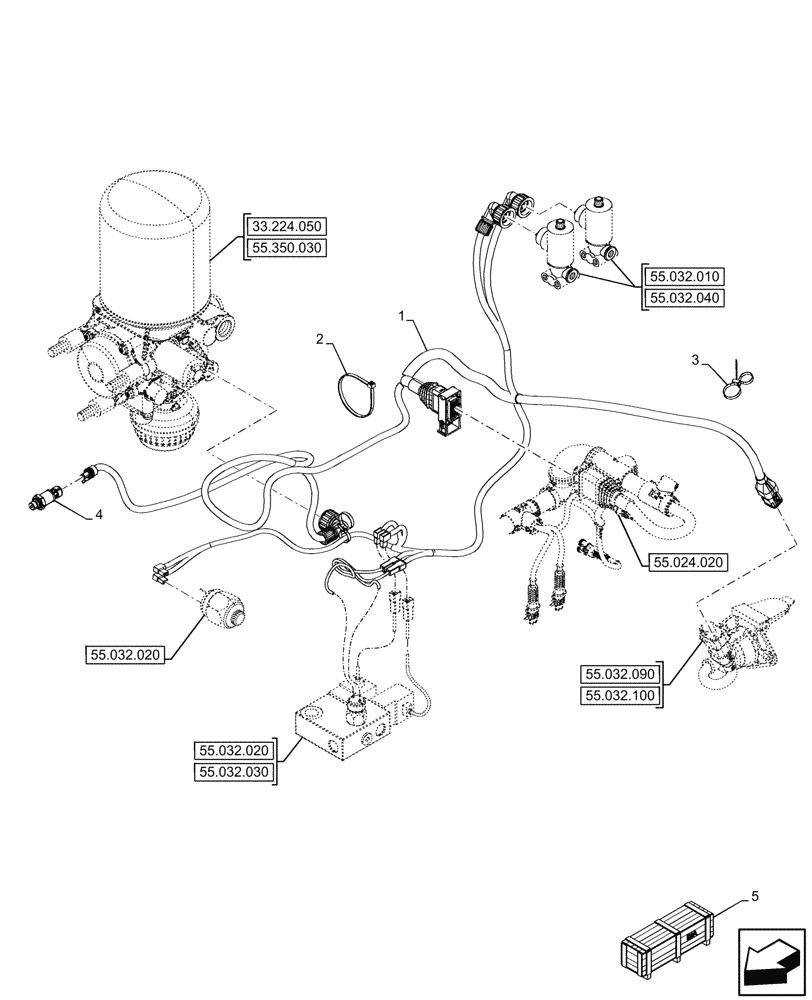

Схема запчастей Case IH OPTUM 270 CVT - (55.032.070) - VAR - 758042, 758044 - HYDRAULIC AND PNEUMATIC TRAILER BRAKE, HARNESS (55) - ELECTRICAL SYSTEMS
55.032.010
1
2
4
3
5
55.032.100
55.032.090
55.350.030
33.224.050
55.032.030
55.032.020
55.032.020
55.032.040
55.024.020

Артикул

Название

Примечание

Количество

1

47772941

WIRE HARNESS

Full Rear Braking

1шт.

2

14560287

CABLE TIE,207.00mm L

7шт.

3

82013031

CABLE TIE,193mm L

2шт.

4

47569031

SENSOR

Pressure

1шт.

5

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 6
