Запчасти Case IH OPTUM 270 CVT (55.032.060) - VAR - 758038, 758041 - PNEUMATIC TRAILER BRAKE, HARNESS (55) - ELECTRICAL SYSTEMS

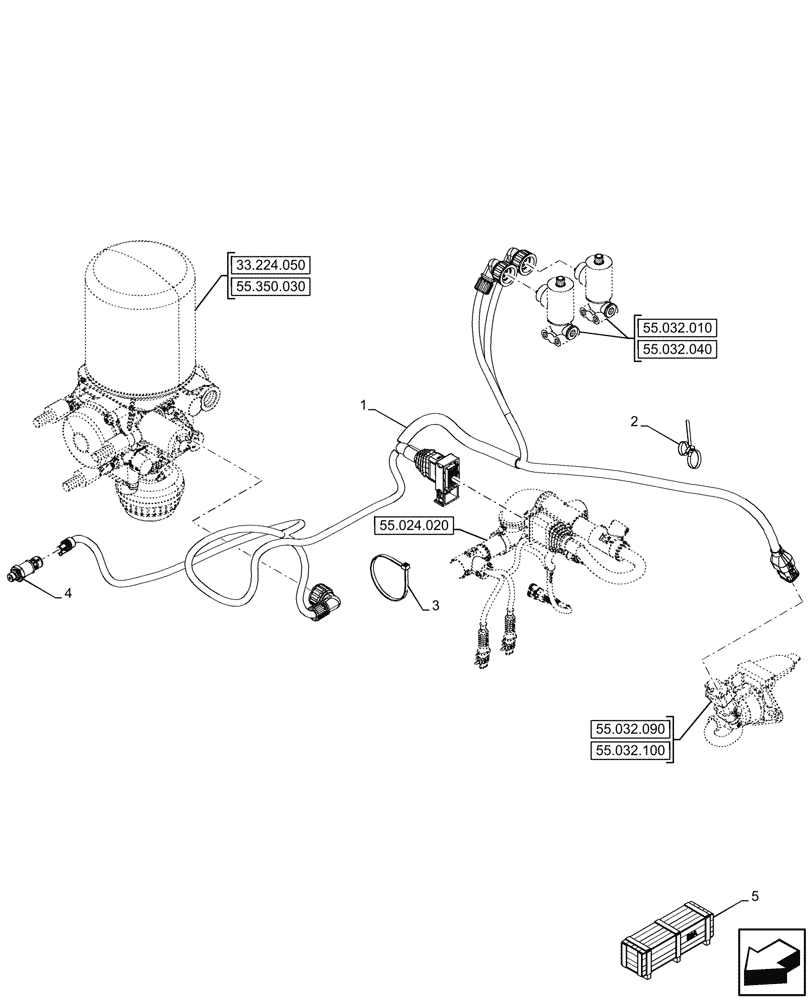

Схема запчастей Case IH OPTUM 270 CVT - (55.032.060) - VAR - 758038, 758041 - PNEUMATIC TRAILER BRAKE, HARNESS (55) - ELECTRICAL SYSTEMS
55.032.010
3
2
1
5
4
55.032.100
55.032.090
55.350.030
33.224.050
55.032.040
55.024.020

Артикул

Название

Примечание

Количество

1

47787241

WIRE HARNESS

Rear Pneumatic Braking

1шт.

2

82013031

CABLE TIE,193mm L

1шт.

3

14560287

CABLE TIE,207.00mm L

4шт.

4

47569031

SENSOR

Pressure

1шт.

5

718264044

DIA KIT, TRACTOR

Pneumatic Air Brake Base Kit, Incl 4

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

718265044

DIA KIT, TRACTOR

Italian Pneumatic Air Brake Finishing Kit, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

718266044

DIA KIT, TRACTOR

Universal Pneumatic Air Brake Finishing Kit, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

718267044

DIA KIT, TRACTOR

UK Pneumatic Air Brake Finishing Kit, Incl 1 - 3

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
