(55.024.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, WIRE, HARNESS

Запчасти Case IH OPTUM 270 CVT (55.024.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, WIRE, HARNESS (55) - ELECTRICAL SYSTEMS

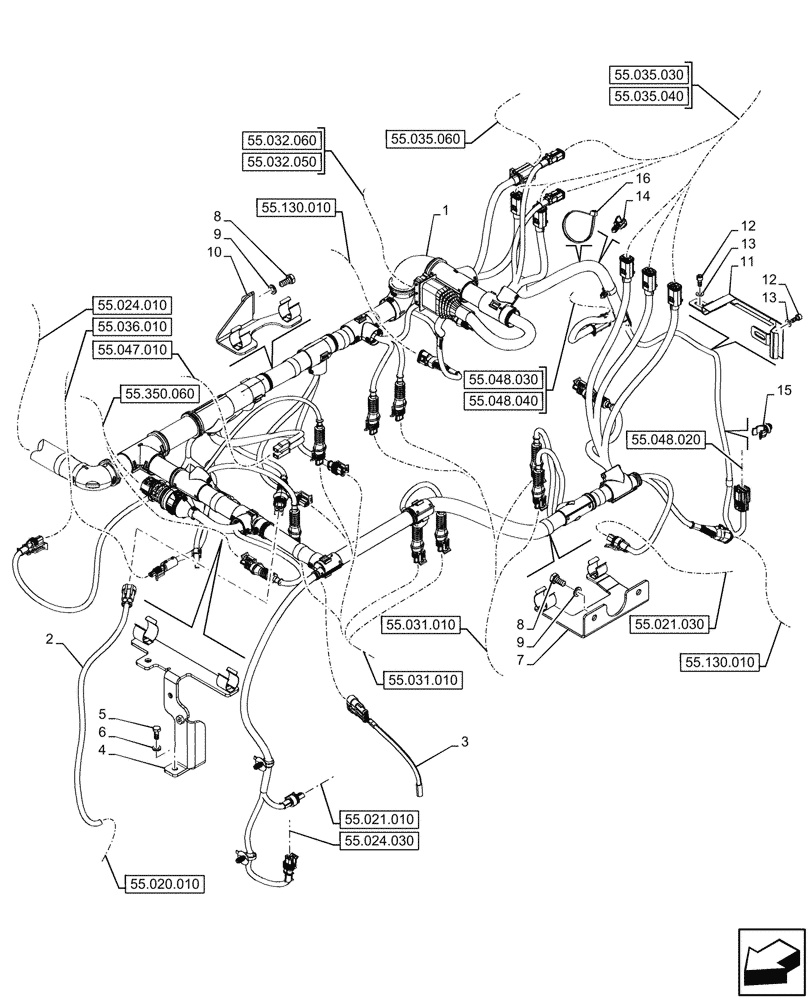

Схема запчастей Case IH OPTUM 270 CVT - (55.024.020) - VAR - 391138, 758022, 758870, 759053 - TRANSMISSION, WIRE, HARNESS (55) - ELECTRICAL SYSTEMS
55.032.060
11
2
10
12
16
8
13
8
13
3
4
7
9
9
14
1
5
15
6
12
55.035.030
55.031.010
55.031.010
55.048.030
55.048.040
55.350.060
55.035.040
55.020.010
55.021.010
55.021.030
55.130.010
55.130.010
55.047.010
55.024.030
55.035.060
55.024.010
55.048.020
55.036.010
55.032.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47875864

WIRE HARNESS

Transmission Harness

1шт.

2

84243033

SENSOR

Transmission Speed Sensor Harness

1шт.

3

47370195

SENSOR

PTO Twist Sensor Harness

1шт.

4

47881029

BRACKET

1шт.

5

10902214

SCREW,Hex, M6 x 16mm

2шт.

6

10519401

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

2шт.

7

47882701

BRACKET

1шт.

8

16043311

BOLT,Hex, M8 x 18, 5.8, Full Thd

3шт.

9

14499401

WASHER,8.4mm ID x 14mm OD x 1.6mm Thk

3шт.

10

47943198

BRACKET

1шт.

11

47920151

BRACKET

1шт.

12

14304121

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

13

12638101

WASHER,5.2mm ID x 14mm OD x 1mm Thk

2шт.

14

47556031

CLIP,0.7-3.5 Thk

1шт.

15

47556032

CLAMP,Top Entry, 12mm ID

1шт.

16

86566989

CABLE TIE,208mm L

1шт.
